Encore Wire 118101006440 Copper THHN 8 Stranded - Yellow

Product Description

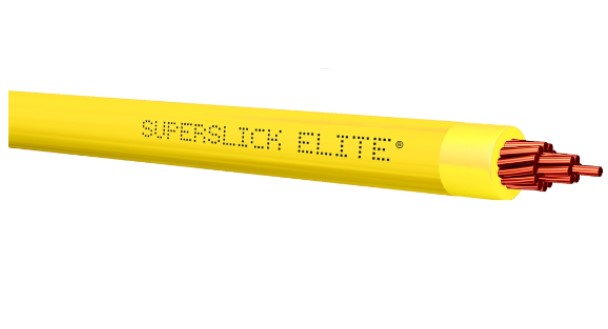

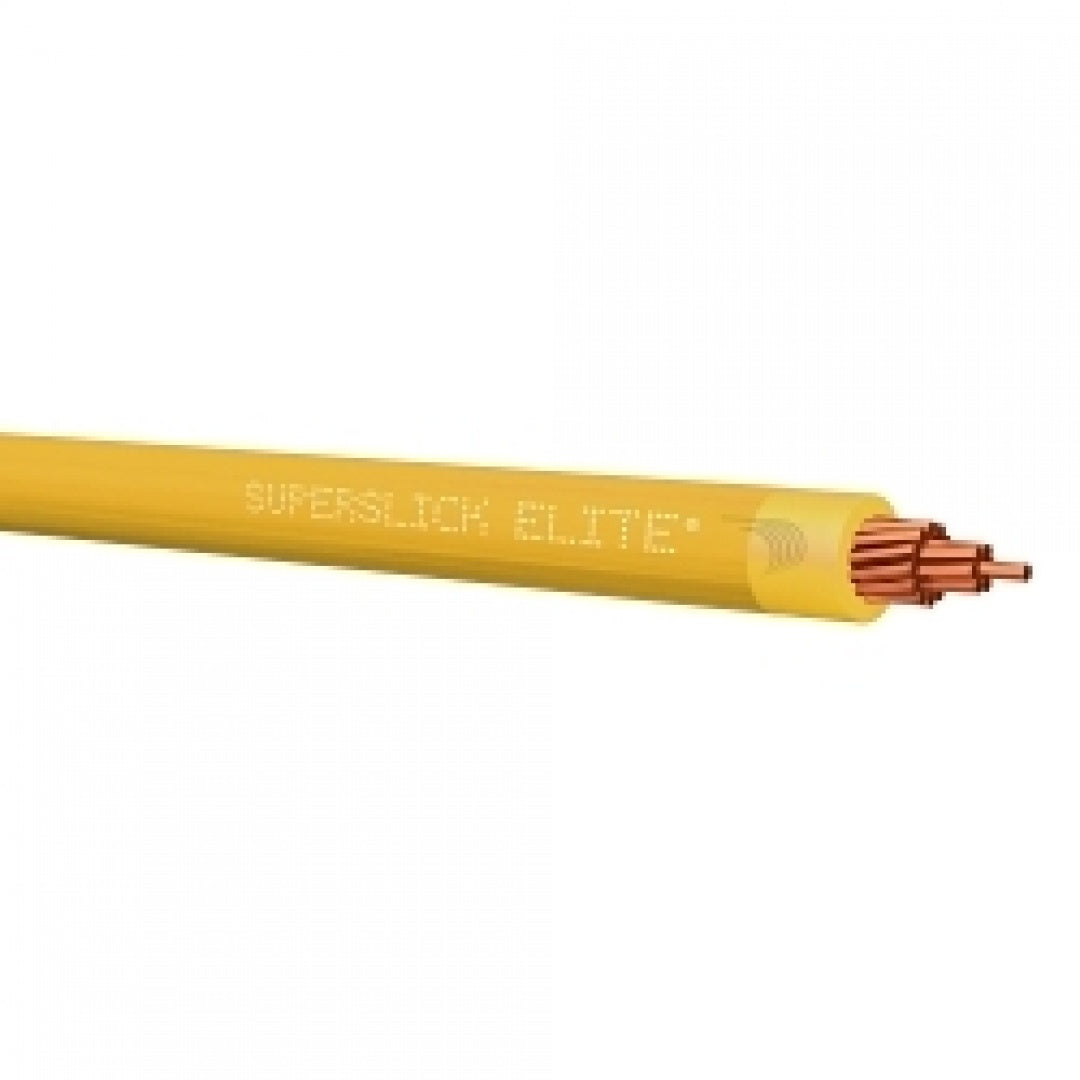

The Encore Wire 118101006440 is a building wire with a Type THWN-2 rating. This wire features a stranded copper conductor with PVC insulation and a nylon jacket. It has a voltage rating of 600 VAC and an amperage rating of 55 A. The conductor size is 8 AWG, and the length is 500 ft.

• Color code polyvinyl chloride (PVC), heat and moisture resistant, flame retardant compound
• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• A tough, polyamide, nylon outer covering per UL-83 and UL-1063

Product Highlights

This Encore Wire THHN wire is suitable for commercial applications and conforms to UL, ASTM, CSA, NEMA, ANSI, and IEEE standards.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101006440
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 55 A
• Conductor Size: 8 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Yellow
• Jacket Material: Nylon
• Length: 500 ft
• Number of Conductors: 1
• Outside Diameter: 0.213 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Country of Origin: USA
• Application: Commercial
• Standard: UL
• Conductor Material: Copper
