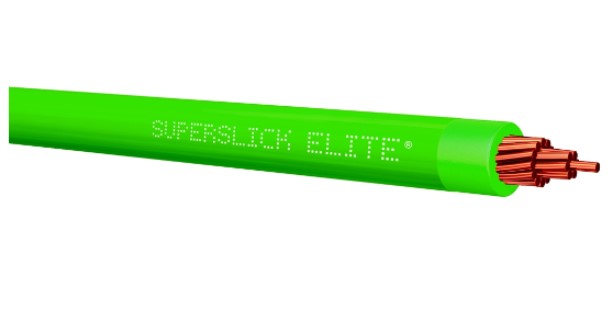

Encore Wire 118101005440 Copper thhn 8 Stranded - Green

Product Description

The Encore Wire 118101005440 is a copper THHN 8 stranded wire in green. This building wire is suitable for new construction or rewiring in 600-volt applications. It is appropriate for use in wet or dry locations at temperatures not exceeding 90 degrees Celsius and has a tough, polyamide, Nylon outer covering per UL-1063 and UL-83.

• Copper THHN 8 Stranded
• Green Color
• Suitable for 600-volt applications

Product Highlights

Stranded green copper THHN wire for general purpose applications. Suitable for new construction or rewiring.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101005440

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid, uncoated copper conductors per ASTM-B3; Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758, AWM Spec 1316, 1317, 1318, 1319, 1320, 1321; ASTM Stranding Class B3, B8, B787, Federal Specification A-A-59544; Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658; UL 1685-FT4/IEEE 1202 (70,000 Btu/hr) Flame Test (1/0 AWG and larger); ICEA T-29-520 (210,000 Btu/hr) Flame Test, ARRA 2009; Section 1605 \"Buy American\" Compliant
