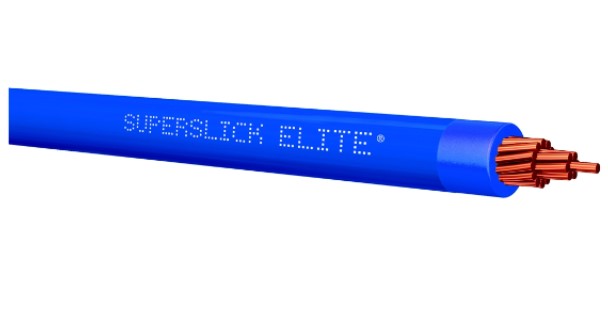

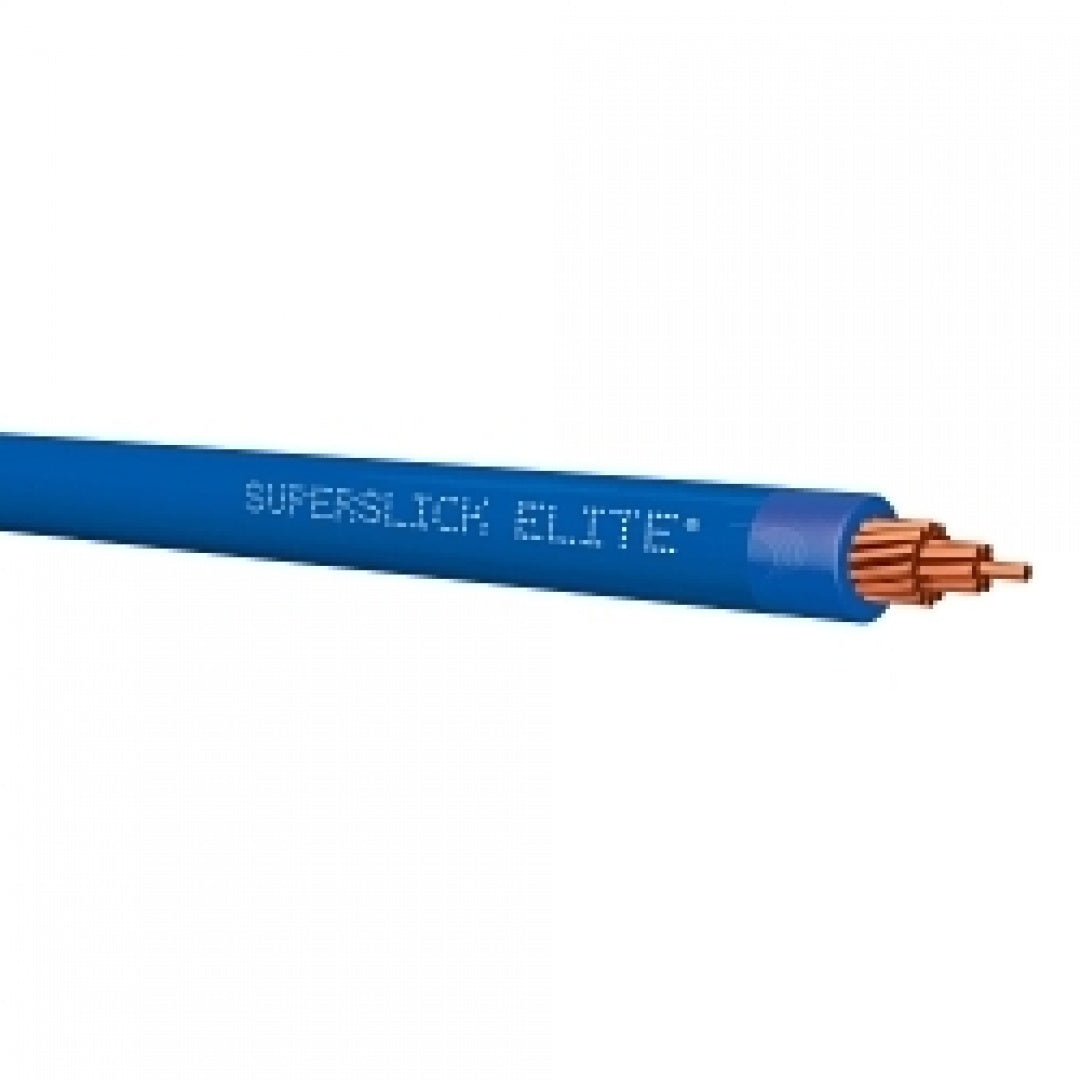

Encore Wire 118101004440 copper thhn 8 stranded 500 ft

Product Description

The Encore Wire 118101004440 is a type THWN-2 building wire with a stranded copper conductor. This 8 AWG wire is rated for 600 VAC and 55A, and comes in a 500 ft reel. It is suitable for commercial applications and conforms to UL, CSA, NEMA, ANSI, and IEEE standards.

• Features a color-coded polyvinyl chloride (PVC) insulation that is heat and moisture resistant and flame retardant.
• Constructed with stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787.
• Protected by a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

This THHN building wire is ideal for various commercial applications requiring a reliable and compliant wiring solution.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101004440
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 55 A
• Conductor Size: 8 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Blue
• Jacket Material: Nylon
• Length: 500 ft
• Number of Conductors: 1
• Outside Diameter: 0.213 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
• Country of Origin: USA
• Mfg Standards/Approvals: UL File E-123774, E-156878, E-156879, cUL Listed, Reach, RoHS Compliant
