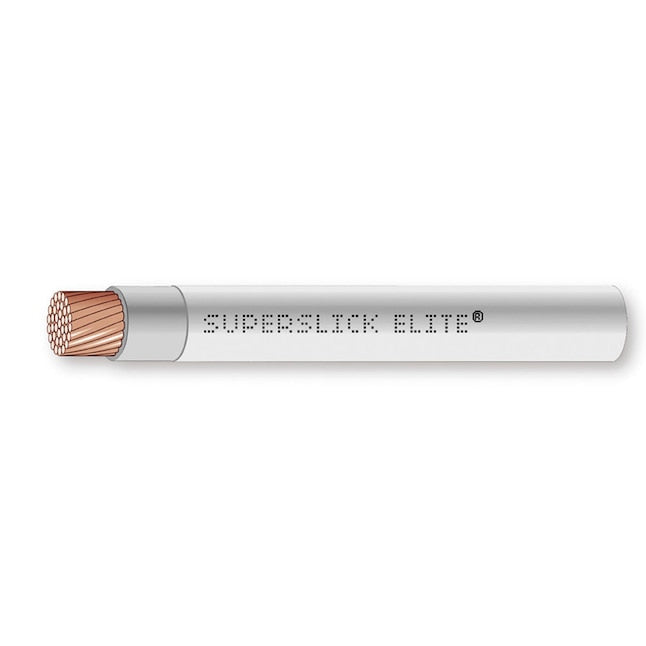

Encore Wire 118101002440 Copper Thhn 8 Stranded - White

Product Description

Encore Wire 118101002440 is a building wire, Type THWN-2, intended for general purpose applications as defined by the National Electrical Code (NEC). This 8 AWG stranded copper conductor features PVC insulation with a nylon jacket and is suitable for 600-volt applications in wet or dry locations at temperatures not exceeding 90 degrees C.

• Color code polyvinyl chloride (PVC), heat and moisture resistant, flame retardant compound
• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• A tough, polyamide, nylon outer covering per UL-83 and UL-1063

Product Highlights

This THHN wire is ideal for new construction or rewiring projects, offering a reliable solution for commercial applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101002440

Technical Specifications

• Amperage Rating: 55 A
• Conductor Size: 8 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: White
• Jacket Material: Nylon
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.213 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
