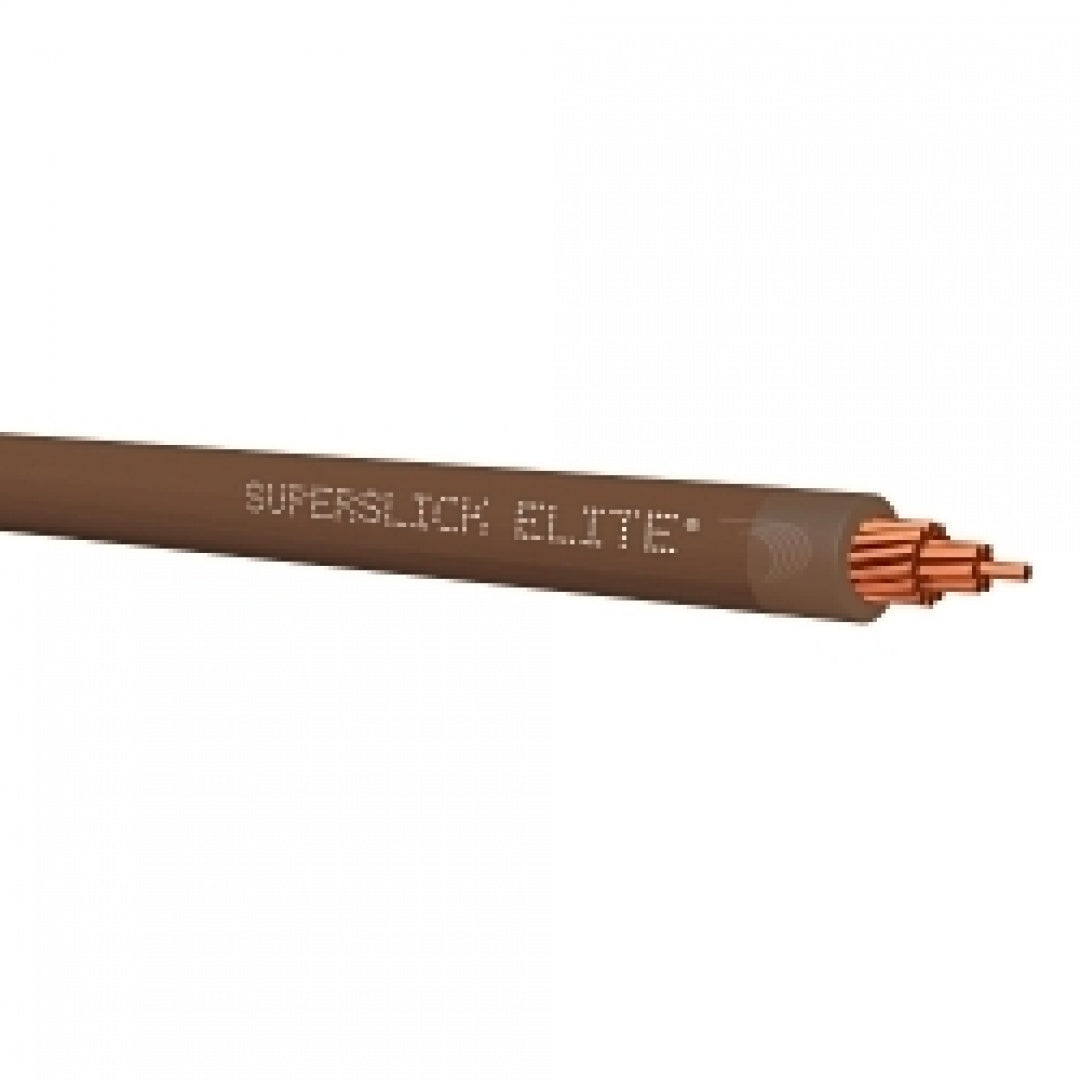

Encore Wire 106100908450 Copper THHN 10 Stranded - Brown (500)

Product Description

The Encore Wire 106100908450 is a type THHN building wire with a stranded copper conductor. This wire is suitable for general purpose applications, new construction, or rewiring for 600V applications. It features a PVC insulation with a nylon jacket and is rated for wet, damp, and dry locations at temperatures up to 90 degrees C. The wire has a 40A amperage rating and an outside diameter of 0.161 inches.

• Features a color-coded polyvinyl chloride insulation that is heat and moisture resistant and flame retardant.
• Constructed with stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787.
• Has a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

This THHN wire is gasoline and oil-resistant and suitable for a variety of applications. It is compliant with Buy American Act, RoHS, and REACH standards.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100908450

Technical Specifications

• Amperage Rating: 40 A
• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Brown
• Jacket Material: Nylon
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.161 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
