Encore Wire 106100907450 copper thhn 10 stranded 1000 ft

Product Description

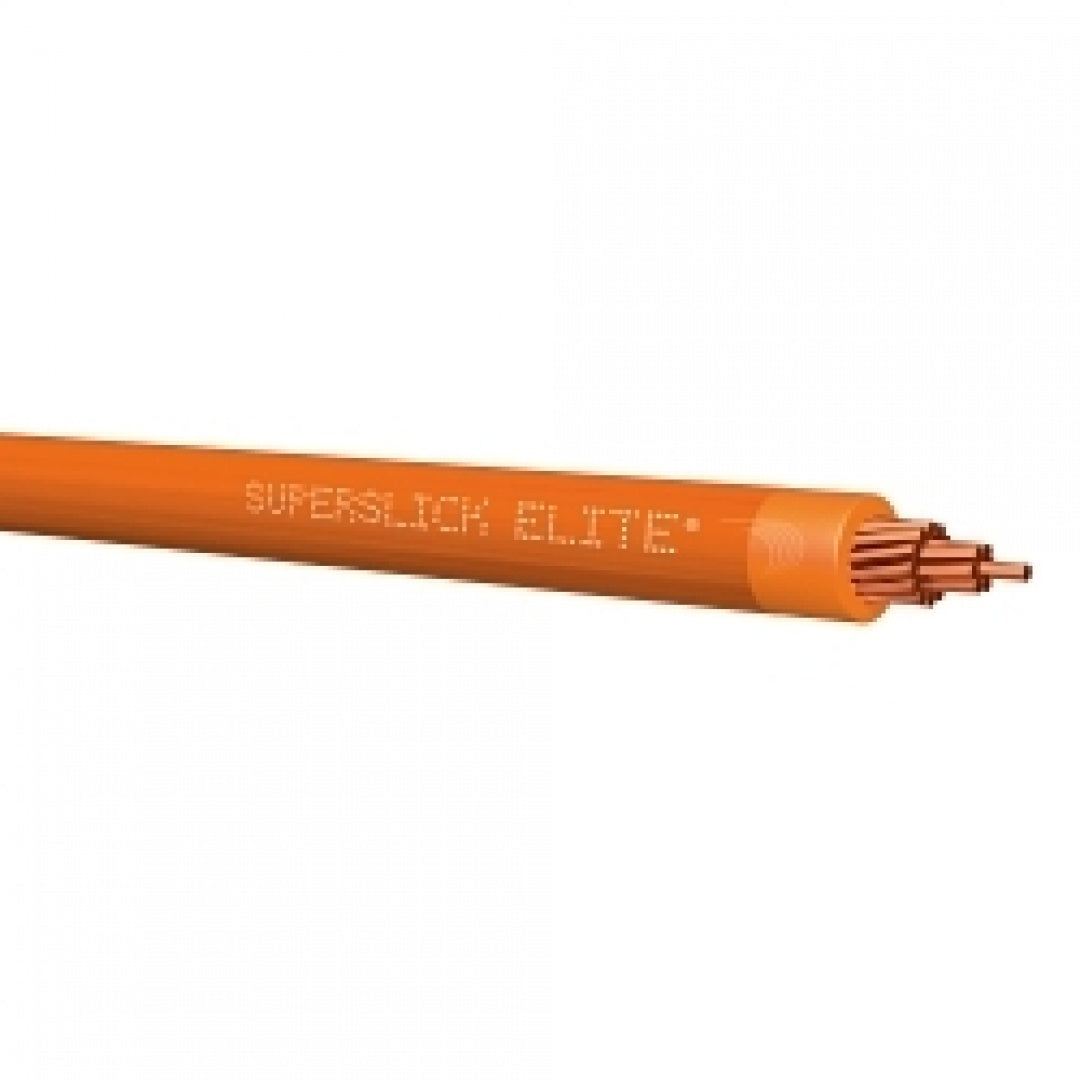

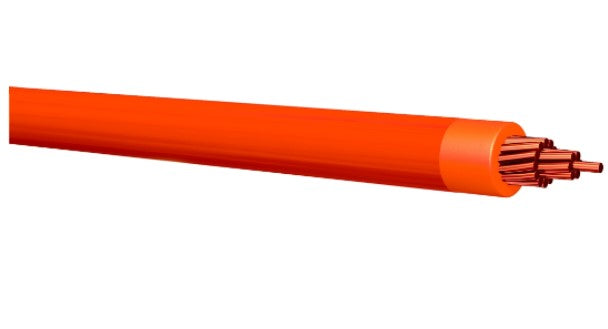

The Encore Wire 106100907450 is a building wire, Type THHN, with reel packaging. It is rated for 600 VAC and 40 A, and features a single stranded copper conductor with a 10 AWG conductor size. The wire has a 0.161 in OD and a length of 1000 ft, with 19 strands, PVC insulation, and a nylon jacket.

• Features color-coded polyvinyl chloride, heat and moisture resistant, flame retardant compound
• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• Suitable for wet, damp and dry locations

Product Highlights

This THHN wire is suitable for commercial, general purpose, new construction, and rewiring applications up to 600V. It is gasoline and oil-resistant and complies with various industry standards.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100907450

Technical Specifications

• Amperage Rating: 40 A
• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Orange
• Jacket Material: Nylon
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.161 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
