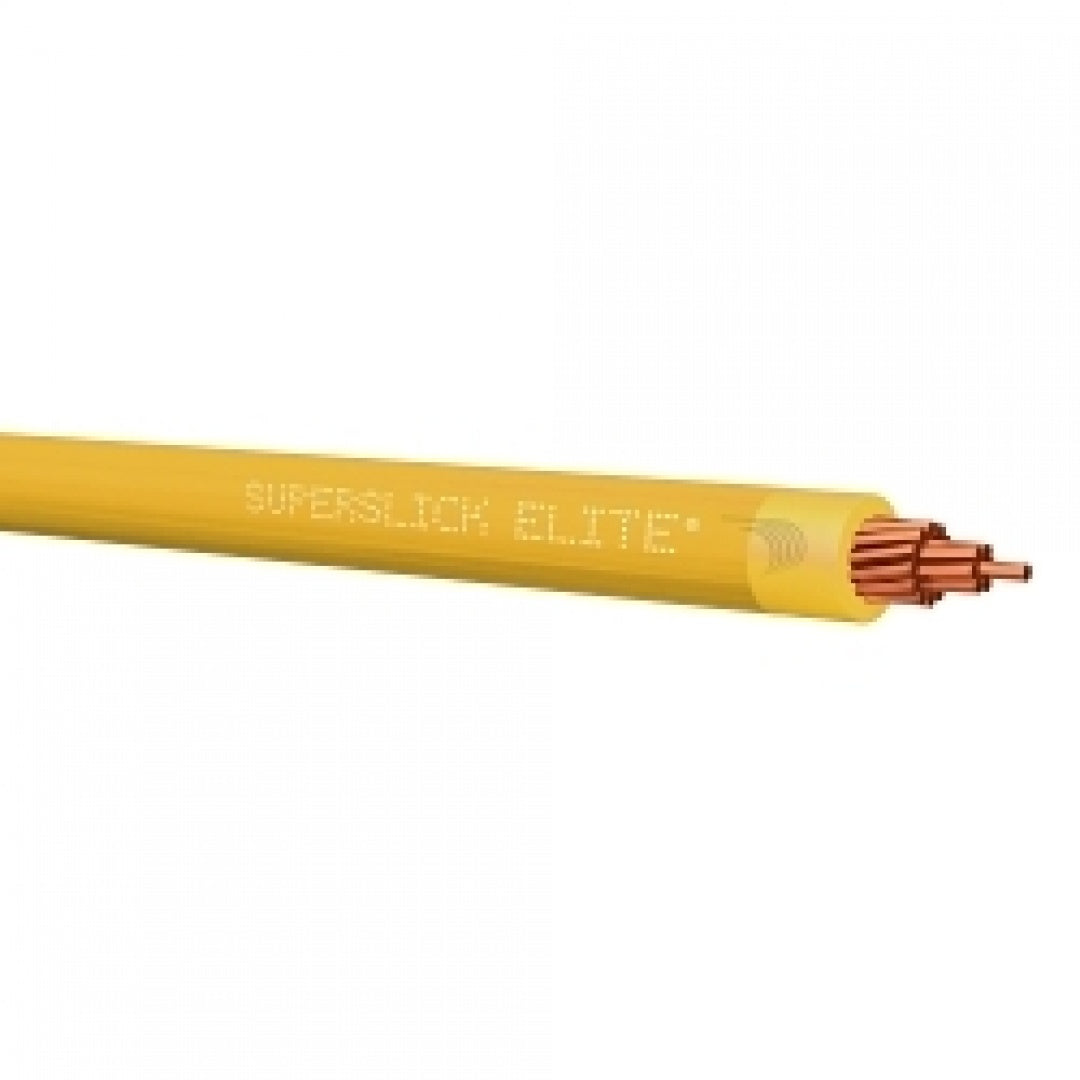

Encore Wire 106100906450 copper THHN 10 stranded 1000 ft

Product Description

The Encore Wire 106100906450 is a type THHN building wire with a stranded copper conductor. This wire is suitable for wet, damp, and dry locations and is rated gasoline and oil-resistant. It is designed for commercial, general-purpose, new construction, and rewiring applications at 600V.

• Features a color-coded polyvinyl chloride insulation that is heat and moisture resistant and flame retardant.
• Constructed with stranded, uncoated bare copper per ASTM-B3, ASTM-B8, and ASTM-B787 standards.
• Has a tough, polyamide nylon outer covering per UL-83 and UL-1063.

Product Highlights

This Encore Wire THHN wire is ideal for various 600V applications, ensuring reliable performance in diverse environments.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100906450

Technical Specifications

• Amperage Rating: 40 A
• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Yellow
• Jacket Material: Nylon
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.161 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
