Encore Wire 106100904450 copper thhn 10 stranded 1000 ft

Product Description

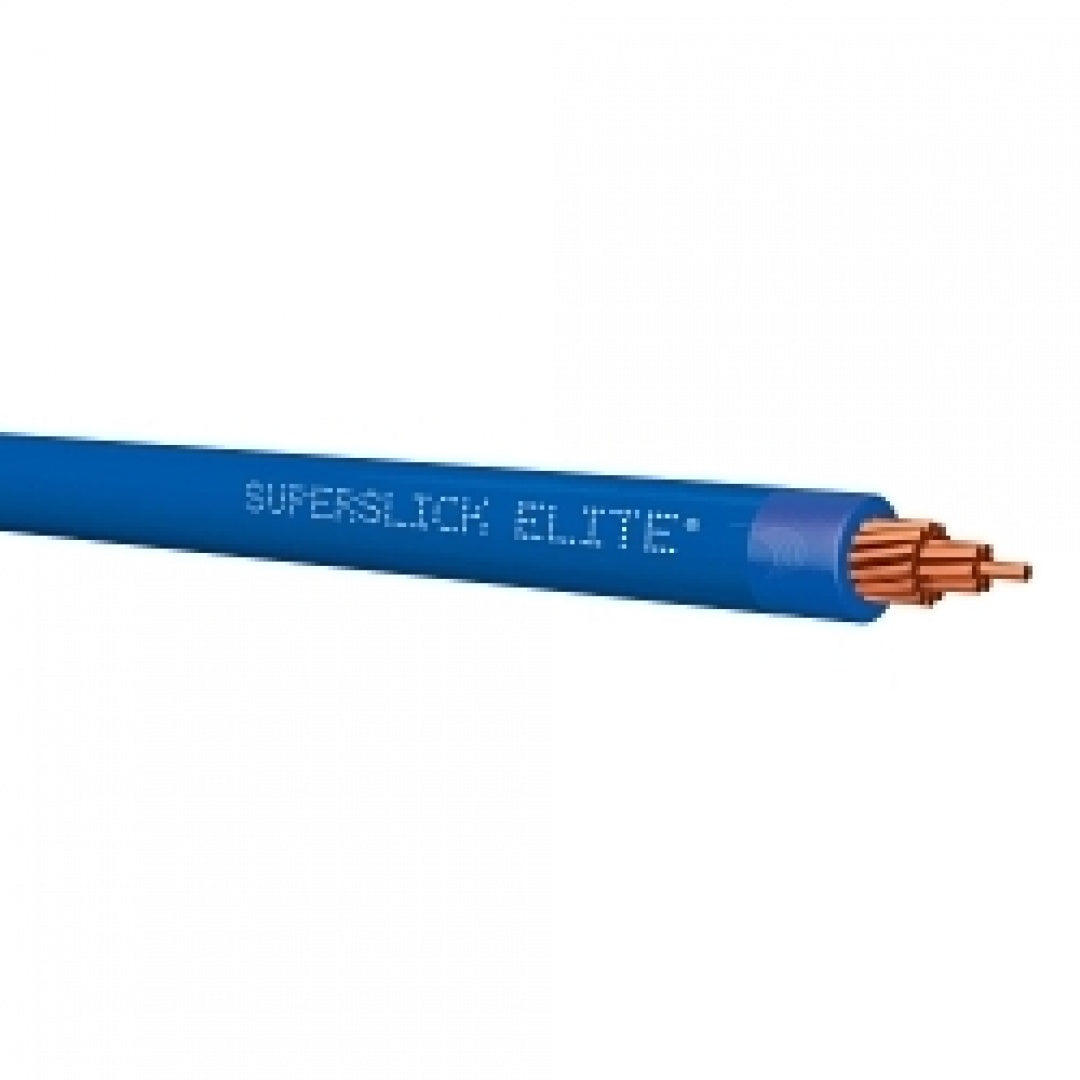

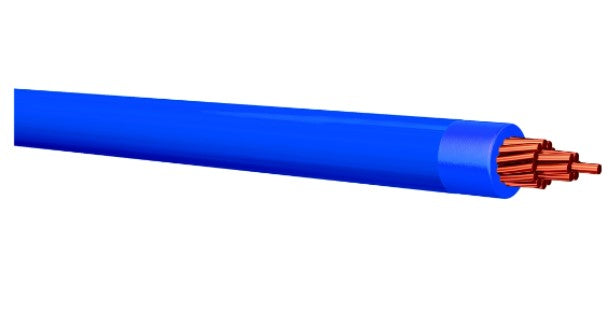

The Encore Wire 106100904450 is a type THHN building wire with a stranded copper conductor. This 10 AWG wire is designed for general purpose applications and is suitable for use in wet, damp, and dry locations. It features a PVC insulation with a nylon jacket and is rated for 600 VAC with an amperage of 40 A. The wire comes in a 1000 ft reel.

• Features a color-coded polyvinyl chloride insulation that is heat and moisture resistant and flame retardant.
• Constructed with stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787.
• Has a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

This THHN wire is suitable for new construction or rewiring for 600V applications and is gasoline and oil-resistant.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100904450

Technical Specifications

• Amperage Rating: 40 A
• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Blue
• Jacket Material: Nylon
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.161 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
