Encore Wire 106100902450 Thhn Cable 10 Awg 500 Ft White

Product Description

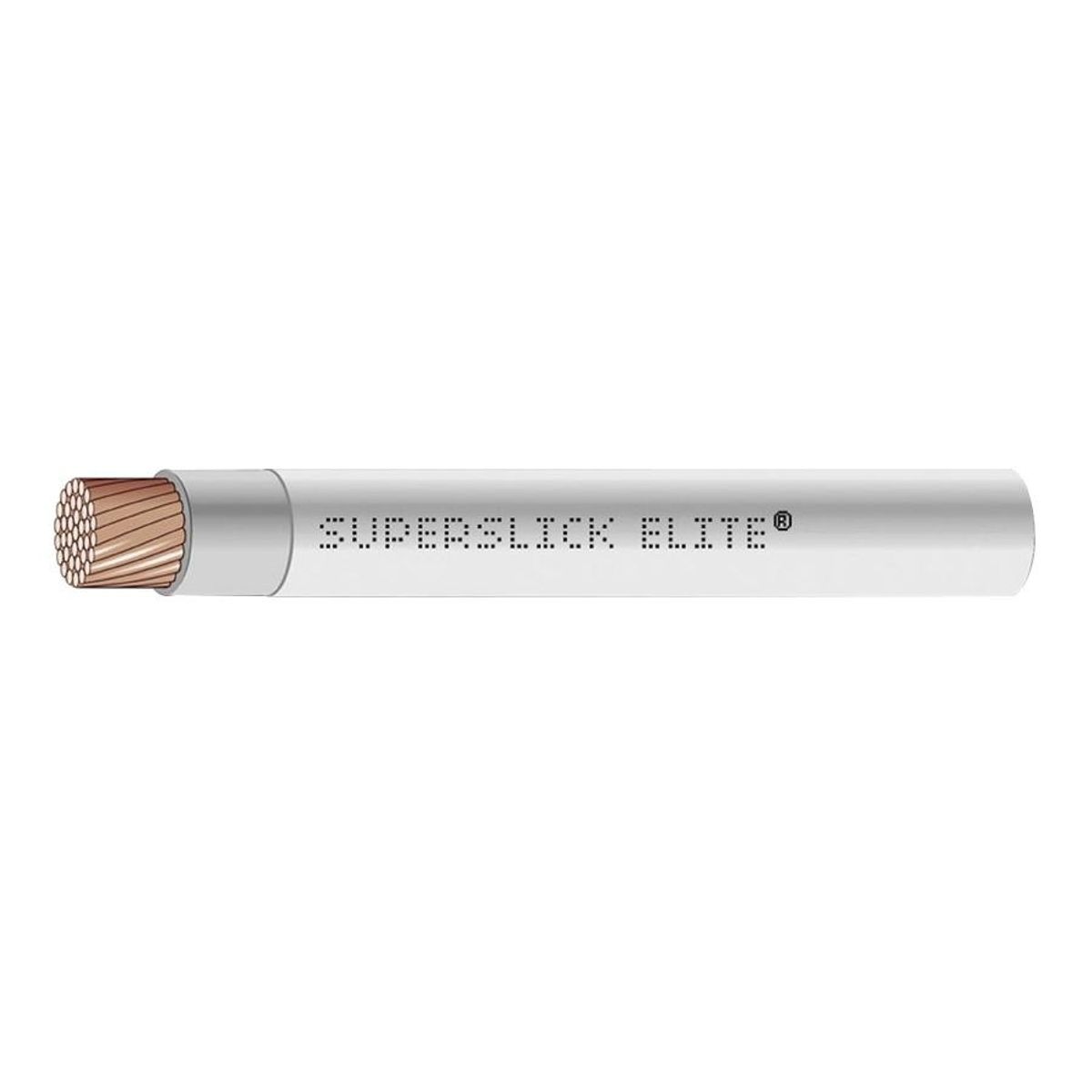

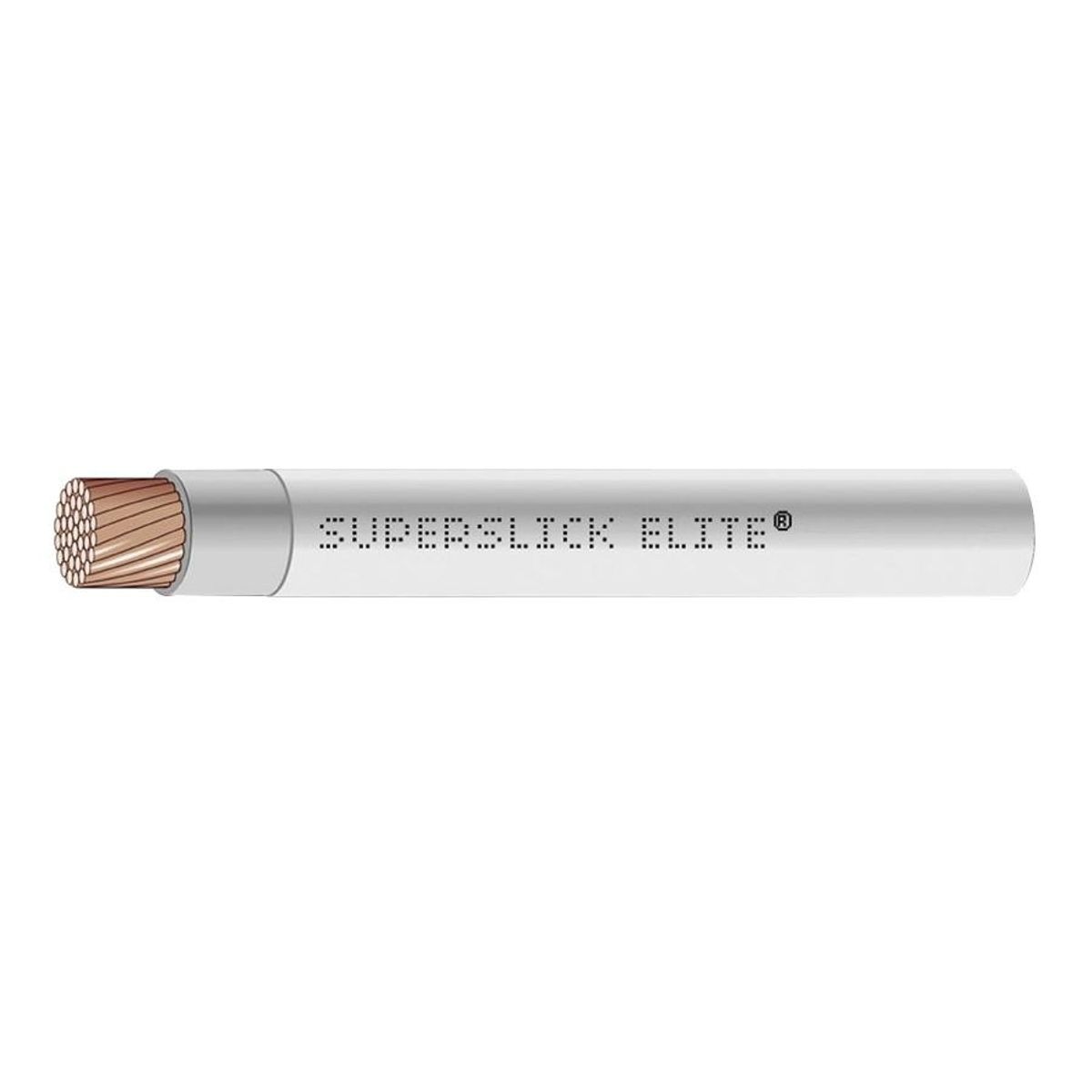

The ENCORE WIRE 106100902450 is a stranded copper THHN/THWN-2 building wire rated for use in commercial and residential electrical installations. Built to a 10 AWG 19-strand configuration, it offers flexible handling compared to solid conductors of the same gauge. The PVC insulation is topped with a nylon jacket, forming the standard THHN construction. Rated at 600 volts and up to 90 degrees C in dry or wet environments, this wire meets the demands of branch circuit and feeder wiring. The Superslick Elite coating reduces friction during conduit pulls, cutting labor time on longer runs.

This 500 ft reel of white 10 AWG THHN wire is suited for branch circuits, feeders, and general-purpose wiring in conduit runs across residential and light commercial projects. White jacket color supports standard color-coding practices for neutral conductors in single-phase circuits. The 500 ft reel length is practical for panel feeds, subpanel runs, and larger circuit roughing work where shorter cuts are not cost-effective.

Key Features

• 19-strand copper construction for improved flexibility during installation
• Superslick Elite nylon jacket reduces pull friction in conduit
• Dual temperature rating: 90 degrees C dry/wet, 75 degrees C oil/coolant immersion
• 600-volt rating supports standard branch circuit and feeder applications
• PVC insulation over stranded copper with nylon outer jacket
• White jacket for neutral conductor color coding

Compatibility

Designed for use in conduit systems where THHN or THWN-2 rated building wire is specified for branch circuit and feeder wiring in residential and commercial electrical installations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit or panel before making any connections. Wire must be installed in approved conduit or raceway per NEC Article 310 requirements. Verify ampacity tables and conduit fill calculations before pulling wire to ensure compliance with installed conditions.

Technical Specifications

• AWG: 10
• Strands: 19
• Outside Diameter: 0.16 inches
• Voltage Rating: 600 volts
• Amperage Rating: 35 A / 40 A
• Temperature Rating: 90 degrees C wet/dry, 75 degrees C oil/coolant
• Length: 500 ft
• Conductor Material: Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Color: White
• Country of Origin: France

Standard Information

• Brand: ENCORE WIRE
• Manufacturer Part Number: 106100902450
