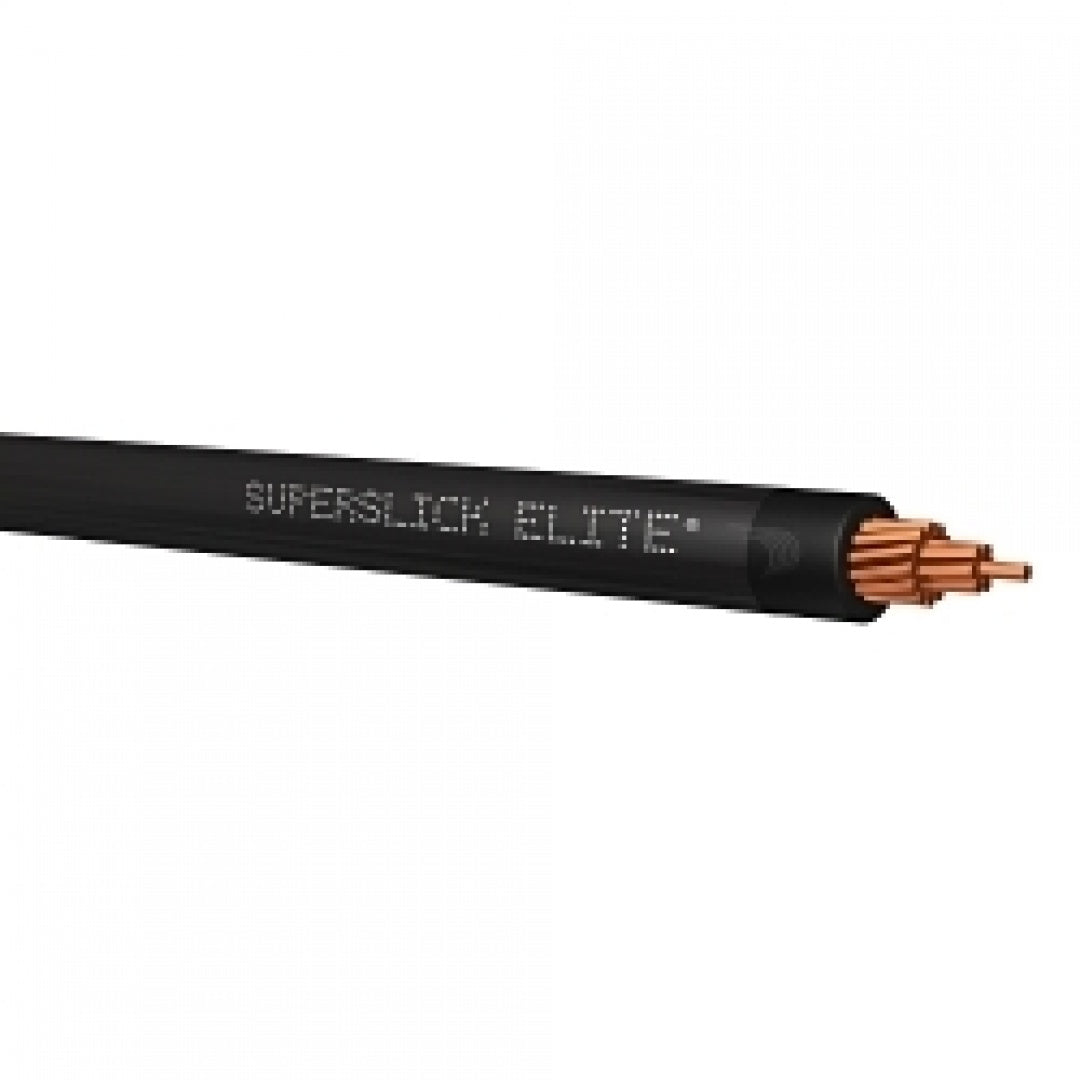

Encore Wire 106100901450 Copper THHN 10 Stranded - Blk (500)

Product Description

The Encore Wire 106100901450 is a type THHN building wire with reel packaging. Suitable for general purpose, new construction, or rewiring for 600V applications. It features a stranded copper conductor with PVC insulation and a nylon jacket, and is rated for gasoline and oil resistance. The wire has a 10 AWG conductor size and a 40A amperage rating.

• Features a color-coded polyvinyl chloride, heat and moisture resistant, flame retardant compound.
• Constructed with stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787.
• Has a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

This THHN wire is suitable for wet, damp, and dry locations and is rated gasoline and oil-resistant.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100901450

Technical Specifications

• Amperage Rating: 40 A
• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Black
• Jacket Material: Nylon
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.161 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
