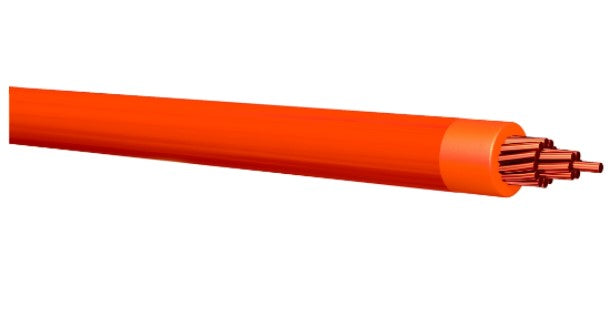

Encore Wire 106100807460 copper thhn 12 stranded - orange

Product Description

The Encore Wire 106100807460 is a copper THHN 12 stranded wire, suitable for general purpose applications as defined by the National Electrical Code (NEC). This 600-volt wire is permitted for new construction or rewiring. It is appropriate for use in wet or dry locations at temperatures not to exceed 90 C, or not to exceed 75 C in oil or coolants.

• Slick, Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG.
• All sizes are rated gasoline and oil-resistant II.
• Solid, uncoated copper conductors per ASTM-B3

Product Highlights

This stranded, uncoated copper conductor features a color-coded Polyvinyl Chloride (PVC) jacket and is heat, moisture, and flame-retardant.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100807460

Technical Specifications

• Manufacturer: ENCORE WIRE
• Wire Gauge: 12 AWG
• Ampacity: 20
• Conductor: Stranded
• Application: General Purpose
• Voltage: 600-volt
• Operating Temperature: 90 C (dry locations), 75 C (oil or coolants), 60 C (wet locations)
• Jacket: Polyamide, Nylon outer covering
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758, AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787, Federal Specification A-A-59544, Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658, Institute of Electrical and Electronics Engineers, ARRA 2009; Section 1605 \"Buy American\" Compliant
