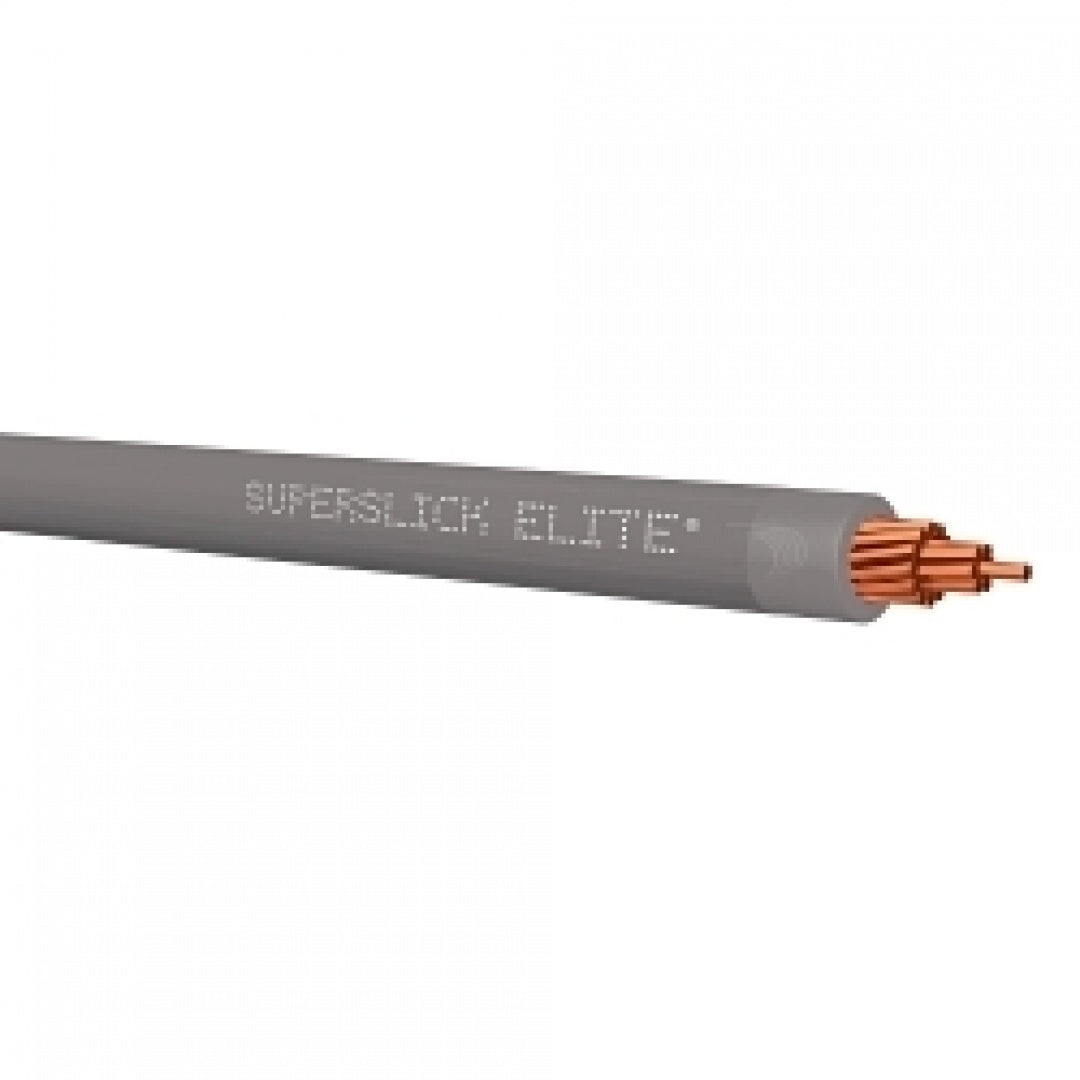

Encore Wire 106100711460 Copper THHN 14 Stranded

Product Description

The Encore Wire 106100711460 is a type THHN building wire with reel packaging. Suitable for general purpose 600V applications, this wire features a stranded copper conductor with PVC insulation and a nylon jacket. It has a 25A amperage rating and is designed for use in wet, damp, and dry locations. The wire has an outside diameter of 0.109 inches and a length of 1000 ft.

• Features a stranded, uncoated bare copper conductor per ASTM-B3, ASTM-B8 and ASTM-B787
• Durable nylon outer covering per UL-83 and UL-1063
• Suitable for wet, damp, and dry locations and is rated gasoline and oil-resistant

Product Highlights

THHN building wire with stranded copper conductor, PVC insulation, and nylon jacket, suitable for 600V applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100711460
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 25 A
• Conductor Size: 14 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Gray
• Jacket Material: Nylon
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.109 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Resistance: Gasoline/Heat/Moisture/Oil/Sunlight
• Standard Approval: RoHS Compliant
