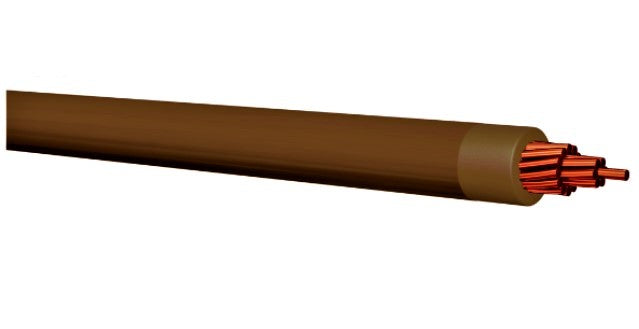

Encore Wire 106100708460 copper THHN 14 stranded - brown

Product Description

The Encore Wire 106100708460 is a copper THHN 14 stranded wire in brown color. Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). It is permitted for new construction or rewiring for 600-volt applications. The conductor is appropriate for use in wet or dry locations.

• Slick, Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG
• All sizes rated gasoline and oil-resistant II.
• Appropriate for use at temperatures not to exceed 90 C or not to exceed 75 C in oil or coolants.

Product Highlights

This THHN stranded copper wire is suitable for a variety of applications requiring THHN or THWN-2 wiring and can be used in both wet and dry environments.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100708460

Technical Specifications

• Color: Brown
• Manufacturer: ENCORE WIRE
• Conductors: Solid, uncoated copper conductors per ASTM-B3; Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758; AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787, Federal Specification A-A-59544, Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658, Institute of Electrical and Electronics Engineers, ARRA 2009; Section 1605 \"Buy American\" Compliant
