Encore Wire 106100606460 copper tffn 16 stranded

Product Description

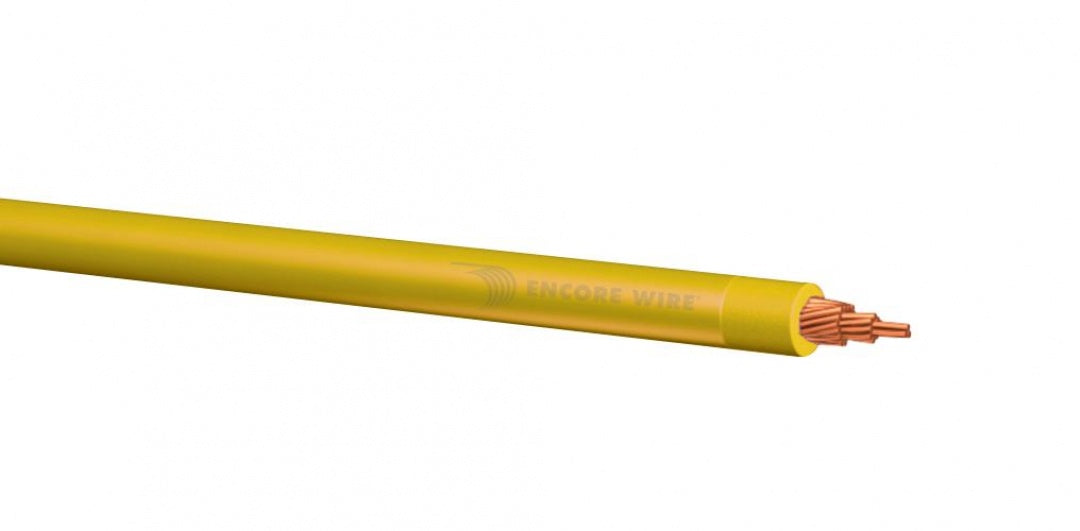

The Encore Wire 106100606460 is a copper THHN 16 stranded wire. This wire is suitable for general purpose applications as defined by the National Electrical Code (NEC). It is permitted for new construction or rewiring for 600-volt applications and can be used in wet or dry locations. The wire features a tough, polyamide, Nylon outer covering.

• Slick, Nylon outer jacket for easy pulling.
• VW-1 rated 14 AWG - 8 AWG.
• All sizes are rated gasoline and oil-resistant II.

Product Highlights

Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8. Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100606460

Technical Specifications

• Manufacturer: ENCORE WIRE
• Construction: Conductors: Solid, uncoated copper conductors per ASTM-B3 Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758 AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787 Federal Specification A-A-59544 Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658, Institute of Electrical and Electronics Engineers, ARRA 2009; Section 1605 "Buy American" Compliant
• Applications: Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). Type THHN/THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2: the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90 C or not to exceed 75 C in oil or coolants. Applications requiring Type MTW: the conductor is appropriate for use in dry locations at 90 C, or not to exceed 60 C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM: the conductor is appropriate for use at temperatures to not exceed 105 C in dry locations.
