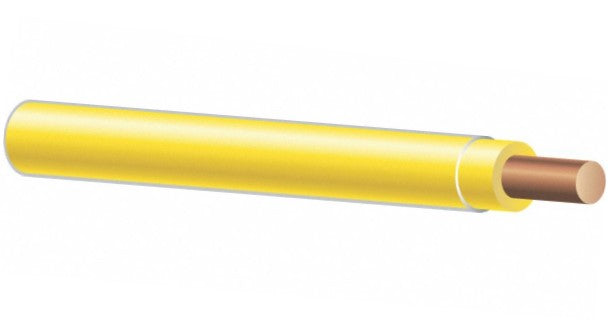

Encore Wire 105100906050 copper thhn 10 solid

Product Description

Encore Wire 105100906050 is a Copper THHN 10 solid wire intended for general purpose applications as defined by the National Electrical Code (NEC). It is permitted for new construction or rewiring for 600-volt applications. The conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90 C or not to exceed 75 C in oil or coolants.

• Slick, Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG.
• All sizes are rated gasoline and oil-resistant II.
• Solid, uncoated copper conductors per ASTM-B3

Product Highlights

This THHN/THWN-2 building wire is suitable for various applications requiring THHN, THWN-2, MTW or AWM. It features a tough, polyamide, Nylon outer covering per UL-1063 and UL-83.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 105100906050

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid, uncoated copper conductors per ASTM-B3
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758; AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787; Federal Specification A-A-59544; Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658; Institute of Electrical and Electronics Engineers; ARRA 2009; Section 1605 \"Buy American\" Compliant
