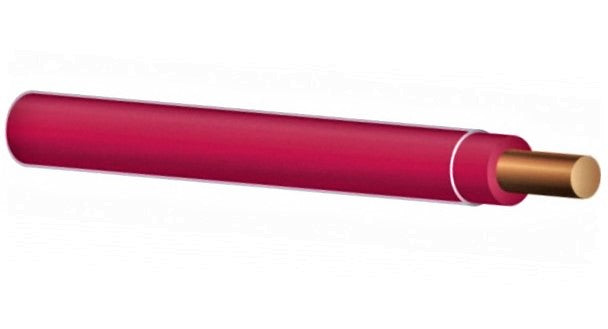

Encore Wire 105100803060 Copper Thhn 12 Solid - Red

Product Description

Encore Wire 105100803060 is a copper THHN 12 solid red wire. It features a slick, nylon outer jacket for easy pulling and is VW-1 rated. This THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). All sizes are rated gasoline and oil-resistant II.

• Slick, Nylon outer jacket for easy pulling.
• Rated gasoline and oil-resistant II.
• Intended for general purpose applications as defined by the National Electrical Code (NEC).

Product Highlights

Solid, uncoated copper conductor with color-coded PVC insulation and a tough polyamide nylon outer covering.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 105100803060

Technical Specifications

• Manufacturer: ENCORE WIRE
• AWG: 12
• Conductor: Solid, uncoated copper conductors per ASTM-B3. Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758, ARRA 2009; Section 1605 \"Buy American\" Compliant AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787 Federal Specification A-A-59544, Canadian Standards Association C22.2 No. 75 NEMA WC70/ICEA S-95-658, Institute of Electrical and Electronics Engineers
