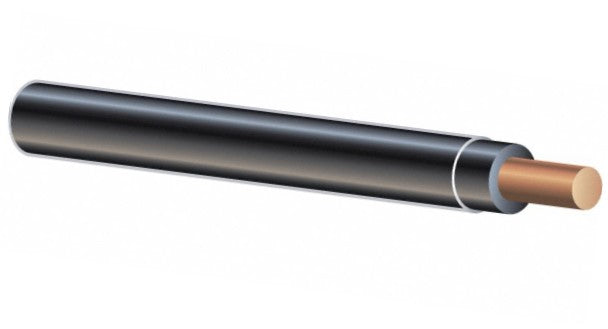

Encore Wire 105100801060 Copper Thhn 12 Solid

Product Description

Encore Wire 105100801060 is a Copper THHN 12 SOLID. This wire features a slick nylon outer jacket for easy pulling and is gasoline and oil-resistant II. It is intended for general-purpose applications as defined by the National Electrical Code (NEC). It is appropriate for use at temperatures not to exceed 105 C in dry locations.

• Slick, Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG.
• All sizes rated gasoline and oil-resistant II.
• Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC).

Product Highlights

Copper THHN 12 SOLID wire with nylon jacket for easy pulling and resistance to gasoline and oil.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 105100801060

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid, uncoated copper conductors per ASTM-B3
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758, ARRA 2009; Section 1605 \"Buy American\" Compliant AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787 Federal Specification A-A-59544, Canadian Standards Association C22.2 No. 75 NEMA WC70/ICEA S-95-658, Institute of Electrical and Electronics Engineers
• Type: THHN
• Voltage Rating: 600 V
• Amperage Rating: 20 A
• Number of Conductors: 1
• Conductor Type: Solid Copper
• Conductor Size: 12 AWG
• Outside Diameter: 0.12 in
• Length: 2000 ft
• Resistance: Gasoline/Heat/Moisture/Oil/Sunlight
• Insulation Material: PVC
• Jacket Material: Nylon
• Jacket Color: Black
• Temperature Rating: 90 deg C
