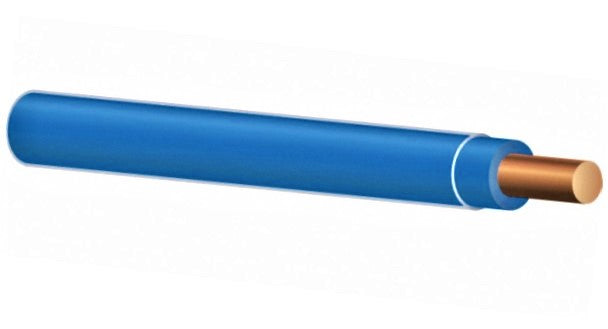

Encore Wire 105100704060 thhn building wire 14 AWG solid copper - blue

Product Description

The Encore Wire 105100704060 is a THHN building wire designed for general purpose applications as defined by the National Electrical Code (NEC). It features a solid, uncoated copper conductor per ASTM-B3 and a color-coded Polyvinyl Chloride (PVC) insulation with a tough, polyamide, Nylon outer covering. Suitable for new construction or rewiring for 600-volt applications.

• Slick, Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG.
• All sizes are rated gasoline and oil-resistant II.
• Solid, uncoated copper conductors per ASTM-B3

Product Highlights

This THHN wire is gasoline, heat, moisture, oil, and sunlight resistant, with a 90 deg C temperature rating and a Nylon jacket.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 105100704060
• Country of Origin: United States

Technical Specifications

• Manufacturer: ENCORE WIRE
• Voltage: 600 V
• Amperage: 15 A
• Conductors: 1
• Conductor Material: Solid Copper Conductor
• Conductor Size: 14 AWG
• Outside Diameter: 0.101 in
• Length: 2000 ft
• Resistance: Gasoline/Heat/Moisture/Oil/Sunlight Resistance
• Insulation: PVC
• Jacket: Nylon
• Jacket Color: Blue
• Temperature Rating: 90 deg C
