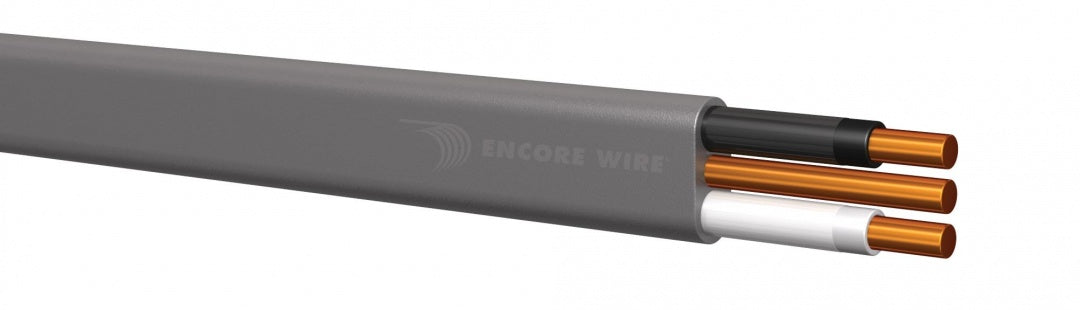

Encore Wire 102210800030 copper UF 12/2WG (250 feet coil)

Product Description

The Encore Wire 102210800030 is a Copper UF 12/2WG (250' Coil). It features solid 14-10 AWG soft, uncoated copper conductors per ASTM-B3 and color-coded Polyvinyl Chloride (PVC) insulation. The cable has a gray, sunlight-resistant PVC jacket and is suitable for direct burial and exposure to direct sunlight. Maximum voltage rating for UF-B is 600 volts.

• Solid 14-10 AWG soft, uncoated copper conductors
• Color-coded Polyvinyl Chloride (PVC) insulation
• Gray, sunlight-resistant PVC jacket

Product Highlights

Copper UF 12/2WG cable with PVC insulation and sunlight-resistant jacket, designed for direct burial and exposure to sunlight.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 102210800030

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid 14-10 AWG soft, uncoated copper per ASTM-B3
• Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN or THWN with a heat-stabilized Nylon rated for 90 C in dry or 75 C in wet locations.
• Grounding Conductor: Soft, uncoated copper per ASTM-B3 and or B8.
• Standards: Underwriters Laboratories Standards UL-83, UL-493, Federal Specification A-A-59544, ASTM-B3 and B8
