Encore thhn10strgry750c Thhn 10 Awg Stranded Copper Wire

Product Description

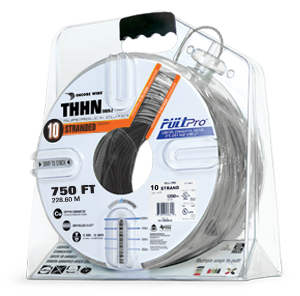

The ENCORE thhn10strgry750c is a 10 AWG stranded copper THHN building wire packaged in a 750-foot PullPro spool. THHN-rated wire is a standard choice for branch circuit and feeder wiring in conduit across residential, commercial, and light industrial applications. The stranded construction offers flexibility during pulls through conduit runs compared to solid conductors. Licensed electricians and wire installers use this wire when running circuits that require a nylon-jacketed, heat-resistant thermoplastic insulation rated for dry and damp locations. The gray insulation color follows standard color-coding practices for identifying conductors in multi-wire installations.

This wire is suited for use in conduit in residential and commercial electrical installations where THHN is specified. The 750-foot PullPro packaging is designed to reduce tangling and ease single-person pulls through long conduit runs. Typical applications include branch circuit wiring, equipment feeds, and panel feeders where 10 AWG conductors are called for by the load calculation. The gray insulation serves as a neutral or identified conductor in many multi-phase wiring configurations per NEC guidelines.

Key Features

• 10 AWG stranded copper conductor for flexibility during conduit pulls
• THHN-rated insulation suitable for dry and damp locations
• Gray insulation color for conductor identification in multi-wire systems
• 750-foot PullPro packaging reduces tangles and simplifies long pulls
• Buy American Compliant

Compatibility

Designed for use in conduit installations where 10 AWG THHN stranded copper building wire is specified per NEC requirements for branch circuit and feeder applications.

Installation Notes

Installation of THHN branch circuit and feeder wiring must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit or panel before making any terminations. THHN wire must be pulled through a listed conduit system rated for the environment; do not expose THHN-only rated wire to wet locations without verifying the full dual-rating of the insulation. Use appropriate wire-pulling lubricant and pulling equipment sized for the conduit fill to avoid insulation damage during the pull.

Technical Specifications

• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Type: THHN
• Insulation Color: Gray
• Wire Length: 750 feet
• Buy American Compliant: Yes

Standard Information

• Brand: ENCORE
• Manufacturer Part Number: thhn10strgry750c
