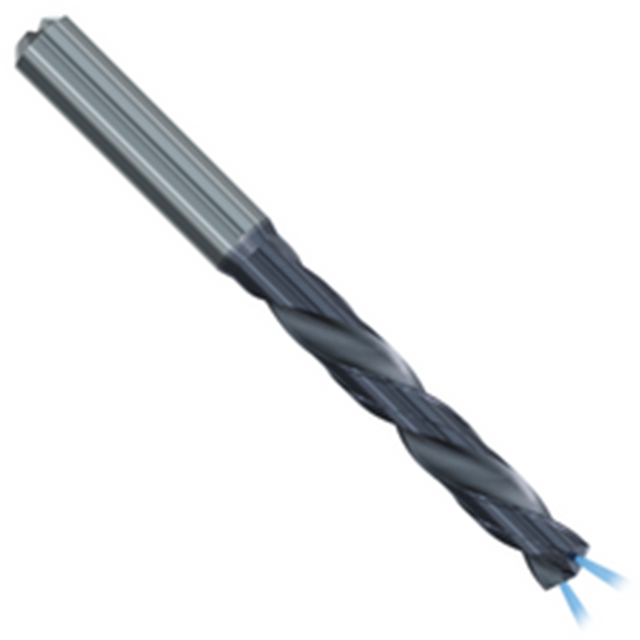

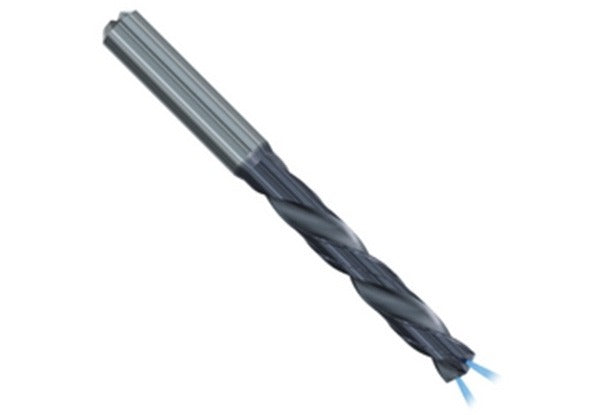

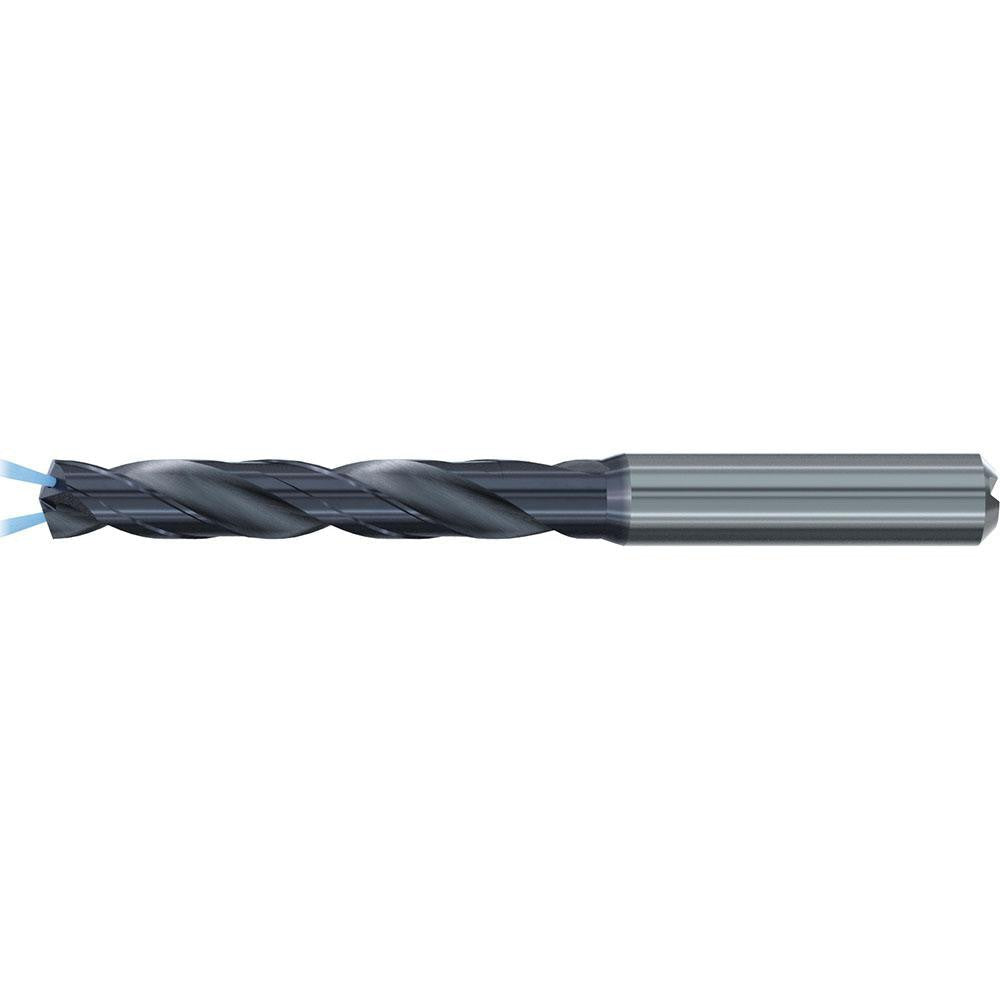

Emuge TA219744.0930 Multi-Drill 5xD IC 9.3 mm

Product Description

Emuge TA219744.0930 is a Multi-Drill 5xD IC solid carbide twist drill with TiAlN (T63) coating and internal coolant feed designed for high-penetration drilling in steel, alloyed steel, nickel alloys, cast iron, and copper. The drill has a 9.3 mm (0.3661") cutting diameter, 140° self-centering point, two flutes with a 30° helix, 103 mm overall length and a 10 mm h6 straight cylindrical shank (HA). It features optimized chip formation and a 5xD flute-by-diameter ratio for consistent short chips.

• TiAlN (T63) coated solid carbide construction for increased wear resistance
• Internal coolant (coolant-through) with 5xD flute-by-diameter ratio for controlled chip formation
• 140° self-centering point, 2 flutes (30° helix), 103 mm OAL, 61 mm flute length, 10 mm h6 HA shank

Product Highlights

Solid carbide TiAlN-coated multi-drill; 9.3 mm diameter; coolant-through; 103 mm overall length; 140° self-centering point; 10 mm h6 shank

Product Information

Standard Information

• Brand: EMUGE
• Manufacturer Part Number: TA219744.0930
