Emuge L0100100.5611 Sti Plug Thread Gage 4-40 2B

Product Description

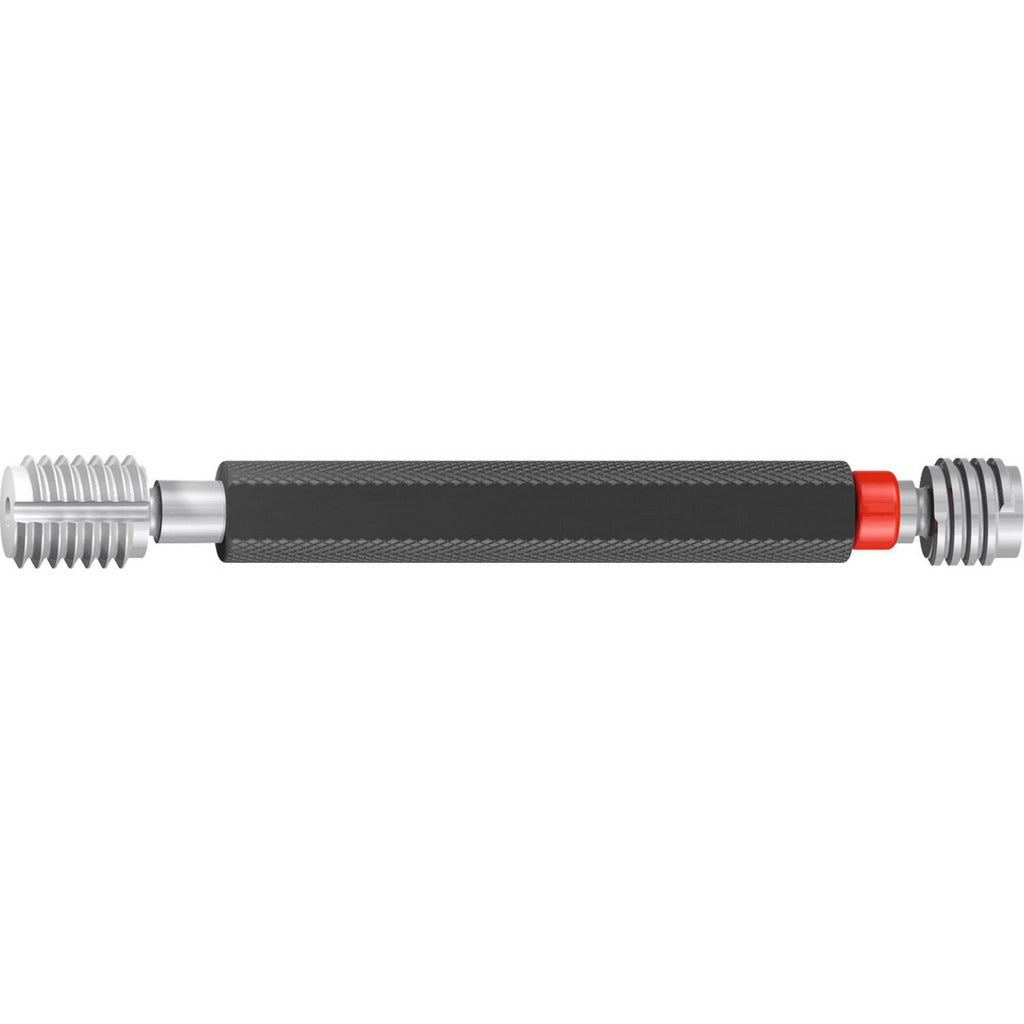

The EMUGE L0100100.5611 is a double-end STI plug thread gage designed to verify internal threaded inserts to the 4-40 thread standard at 2B classification. One end carries the Go member; the other carries the No Go member. Together they confirm that a tapped hole with a helical insert will accept an in-tolerance fastener and reject an out-of-tolerance one. The gage body is machined from tool steel with a bright, uncoated finish and ships with a handle and a short-form certification document. Machinists, tool-room technicians, and quality inspectors use this gage as part of in-process or incoming inspection routines on threaded insert applications.

This gage is used wherever STI (Screw Thread Insert) tapped holes must be verified before insert installation or after rework. Typical applications include aerospace component inspection, precision machined part verification, and production-line quality checks on any assembly that relies on helical wire inserts to reinforce 4-40 threaded holes. The double-end configuration keeps both Go and No Go members on a single tool, reducing bench clutter and handling time during inspection. A handle is included, making the gage ready to use out of the box.

Key Features

• Double-end design combines Go and No Go members on one tool
• Conforms to ASME B1.2 inspection standards for thread gages
• Tool steel construction for wear resistance in production environments
• Bright, uncoated finish allows visual inspection of gage surfaces
• Includes handle and short-form certification document
• Right-hand thread direction matches standard STI insert applications

Compatibility

Designed for inspection of STI-style tapped holes with a 4-40 thread size and 2B tolerance classification, conforming to ASME B1.2 standards.
