Emuge L0100100.5016 Plug Thread Gage 3/4-10 2B

Product Description

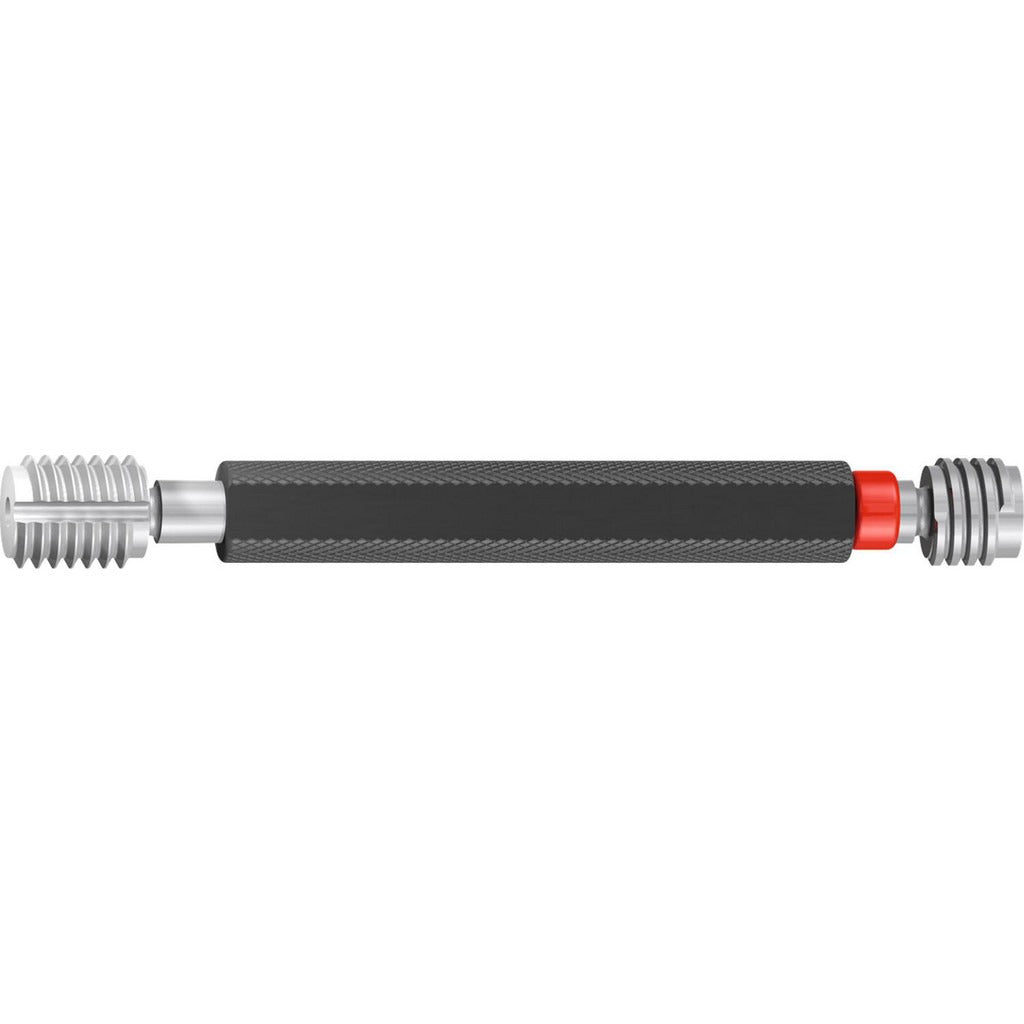

The EMUGE L0100100.5016 is a double-end plug thread gage used to verify internal thread conformance to a 3/4-10 UNC thread specification at a 2B tolerance class. It performs both a Go and a No Go check in a single tool, allowing machinists and quality technicians to confirm that threaded holes fall within acceptable dimensional limits. The gage body is manufactured from tool steel with a bright, uncoated finish and ships with a handle and a short form certification document. Compliance is built to ASME B1.2 standards.

This plug thread gage is used in manufacturing, machining, and quality control environments where 3/4-10 UNC internal threads must be verified before assembly. It is suited for inspection stations, job shop floors, and production lines working with fastener-receiving holes in metal or plastic components. The double-end configuration keeps Go and No Go members on one tool, reducing the number of individual gages needed at a workstation.

Key Features

• Double-end design combines Go and No Go members in a single tool
• Thread size 3/4-10 UNC at 2B tolerance class
• Tool steel construction for durability and wear resistance
• Bright, uncoated finish
• Meets ASME B1.2 dimensional standards
• Includes handle and short form certification

Compatibility

Designed for inspection of 3/4-10 UNC 2B class internal threads in accordance with ASME B1.2 standards.

Installation Notes

Plug thread gages are handled by quality control technicians and machinists rather than installed in a system. Store the gage in a clean, dry environment away from contaminants that could affect thread contact surfaces. Do not force the Go member into a threaded hole; resistance indicates an out-of-tolerance condition. Calibrate and re-certify the gage at intervals consistent with your facility quality plan.
