Emuge L0100100.0329 Plug Thread Gage M14x1 6H

Product Description

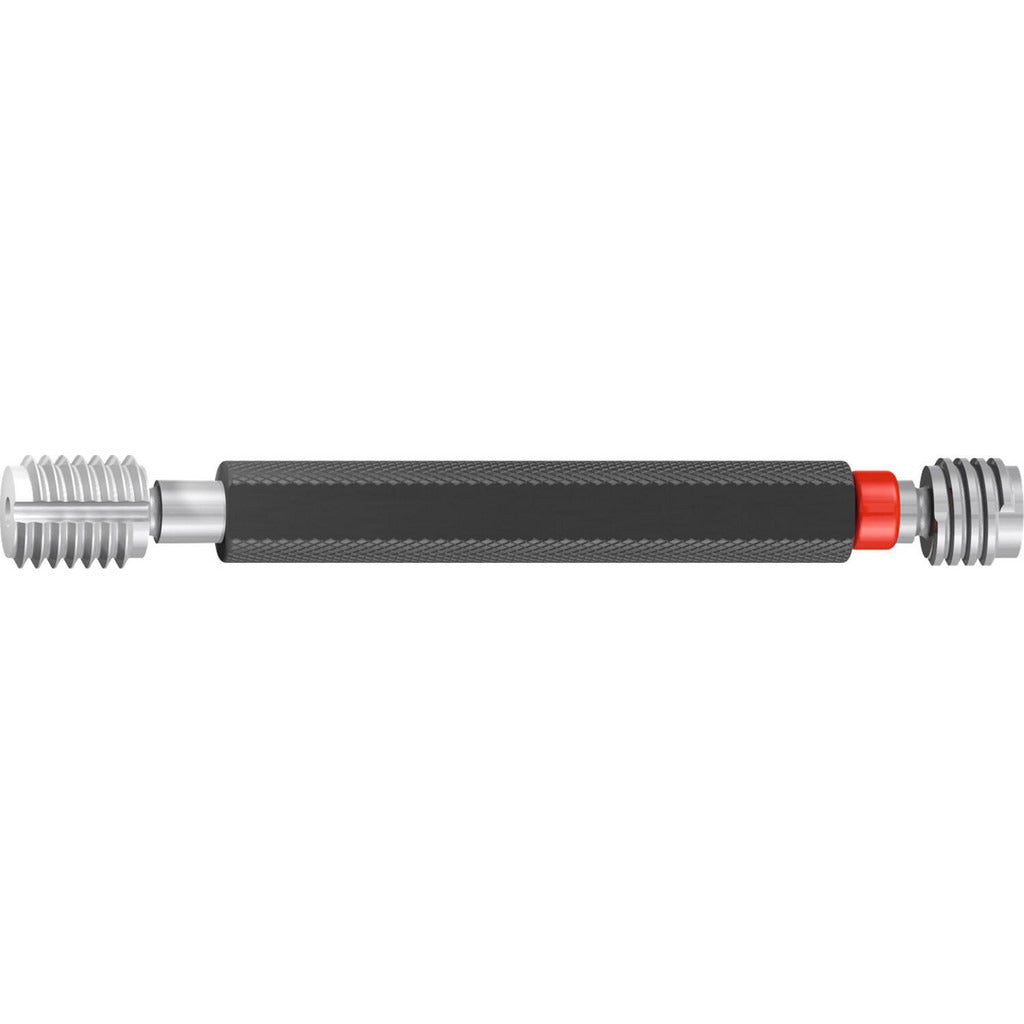

The EMUGE L0100100.0329 is a double-end plug thread gage designed to verify M14x1 internal threads to the 6H tolerance class. One end carries the Go member and the other the No Go member, allowing a technician to confirm both the minimum and maximum thread limits in a single tool. The gage is manufactured from tool steel with a bright finish and conforms to DIN ISO 1502 standards. A handle is included, and a short-form certification ships with each unit. Machinists, quality-control inspectors, and precision manufacturers use this gage for in-process and final inspection of metric fine-pitch threaded bores.

This gage is suited for production and inspection environments where M14x1 metric fine threads must be verified against 6H class tolerances. Typical applications include aerospace, automotive, and general precision machining shops inspecting tapped holes in fixtures, housings, or mechanical assemblies. The double-end configuration reduces the number of individual gages required on the inspection bench and keeps the Go and No Go members paired to a single calibrated set.

Key Features

• Double-end design: Go and No Go members combined in one gage
• M14x1 metric fine-pitch thread form, 6H tolerance class
• Conforms to DIN ISO 1502 standard for thread gages
• Tool steel construction with bright finish for durability and corrosion resistance
• Handle included for immediate use out of the box
• Short-form certification included for quality and traceability records

Compatibility

Designed for inspection of M14x1 internally threaded components held to the 6H tolerance class per DIN ISO 1502.

Installation Notes

Thread plug gages are used by quality-control inspectors and machinists, not installed in a system. Before gaging, clean the threaded bore of chips, coolant, and debris to prevent false readings. The Go member should pass through the full thread length under hand force only; never use power tools or excessive force to drive the gage. Store the gage in its protective case when not in use to prevent wear and maintain calibration integrity.
