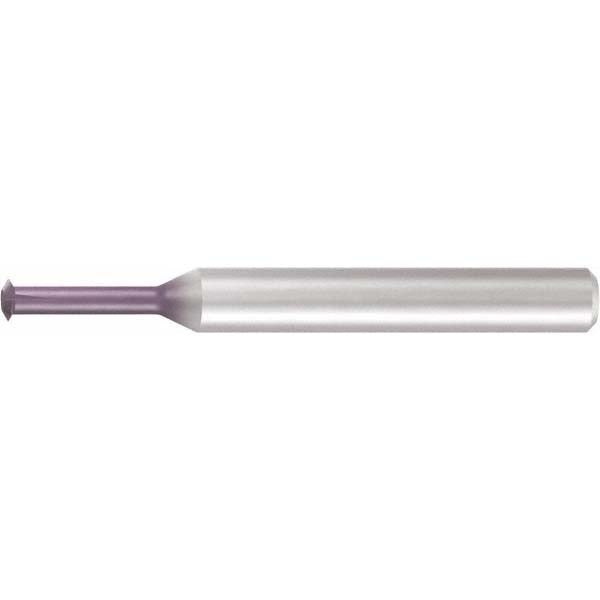

Emuge GFS23706.5005 Thread Mill 6-32 Solid Carbide Ticn

Product Description

The EMUGE GFS23706.5005 is a single profile internal thread mill designed for cutting 6-32 unified coarse threads and accommodating a thread per inch range of 32 to 40 TPI. Built from solid carbide and finished with a TiCN coating, this tool delivers wear resistance and thermal stability in demanding threading operations. With a cutting diameter of 0.1 inches and a 1/8-inch shank, it is engineered for small-diameter internal thread milling where precision and rigidity are critical. Three flutes provide balanced chip evacuation during the helical interpolation path typical of CNC thread milling cycles.

This tool is suited for CNC machining centers performing internal thread milling in small-bore applications. The compact geometry makes it appropriate for aerospace, medical device, electronics, and general precision machining work where tapping is impractical or where thread quality requirements are tight. It is installed and used by CNC machinists and tooling specialists working with materials that benefit from the hardness and lubricity of a TiCN-coated carbide tool. The 1.625-inch overall length provides adequate reach while maintaining tool rigidity in confined bore entries.

Key Features

• Solid carbide construction for rigidity and extended tool life in hard and abrasive materials
• TiCN coating improves surface hardness and reduces friction during thread milling
• Cuts 6-32 internal threads with a TPI range of 32 to 40
• Three flutes for balanced chip load and efficient evacuation
• 0.1-inch cutting diameter and 1/8-inch shank for small-bore threading applications
• 0.25-inch length of cut with a neck length of 0.276 inches for clearance in tight entries

Compatibility

Designed for use in CNC machining centers capable of helical interpolation for internal thread milling in the 6-32 unified thread size range with a 1/8-inch tool holder or collet.

Installation Notes

Thread mills require a CNC machining center with helical interpolation capability; this tool is not suitable for use in a manual drill press or standard tapping head. Secure the 1/8-inch shank in a properly sized collet or tool holder and confirm runout before beginning the operation. Program the helical path according to the thread pitch and cutting diameter to achieve the correct thread form. Follow all machine guarding and PPE requirements applicable to CNC milling operations.
