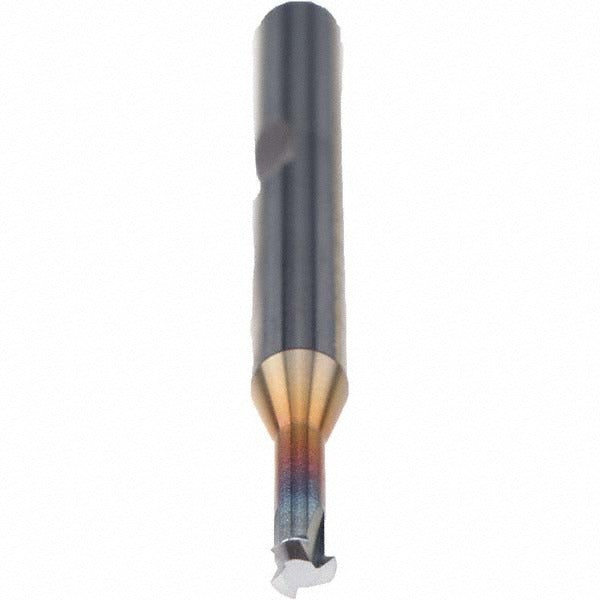

Emuge GFS23106.5614 Sti Thread Mill 8-32 Solid Carbide

Product Description

The EMUGE GFS23106.5614 is a single profile STI thread mill designed for cutting internal threads in demanding machining applications. Built from solid carbide and coated with TiCN for improved wear resistance and tool life, this mill handles thread sizes of 8-32 across a range of 32 to 36 threads per inch. With a cutting diameter of 0.167 inches, a 1/4-inch shank, and an overall length of 2.5 inches, it is sized for precision work in tight bore geometries. The three-flute configuration balances chip evacuation with cutting stability. This tool is installed and run by machinists and CNC operators working in metal fabrication and precision manufacturing environments.

This thread mill is suited for internal STI thread applications where a tapping operation is not practical or where thread quality and positional accuracy are critical. STI threads are used in thread insert installations, allowing the host material to accept a standard thread after a Heli-Coil or similar insert is placed. The 1.374-inch neck length provides clearance for reaching into counterbored or recessed features. Typical materials machined include aluminum, steel, and other metals where carbide tooling is standard practice.

Key Features

• Single profile design mills one thread form at a time for accurate STI thread geometry
• Solid carbide construction provides rigidity and dimensional stability under cutting loads
• TiCN coating improves surface hardness and reduces built-up edge on the cutting faces
• Three flutes support consistent chip flow in internal thread milling operations
• 1.374-inch length of cut accommodates thread depth requirements in typical STI insert applications
• No coolant-through design - external coolant or cutting fluid applied at the spindle or fixture

Compatibility

Designed for use in CNC machining centers capable of helical interpolation, suitable for producing 8-32 STI internal threads in preparation for threaded insert installation.

Installation Notes

Thread milling requires a CNC machining center with helical interpolation capability - confirm controller support before programming. Secure the tool in a precision collet or hydraulic chuck to minimize runout, which directly affects thread quality. Always verify spindle speed and feed rate against the tool manufacturer recommendations for the workpiece material. Inspect the cutting edges before use and do not run a chipped or worn tool, as thread form accuracy will be compromised.
