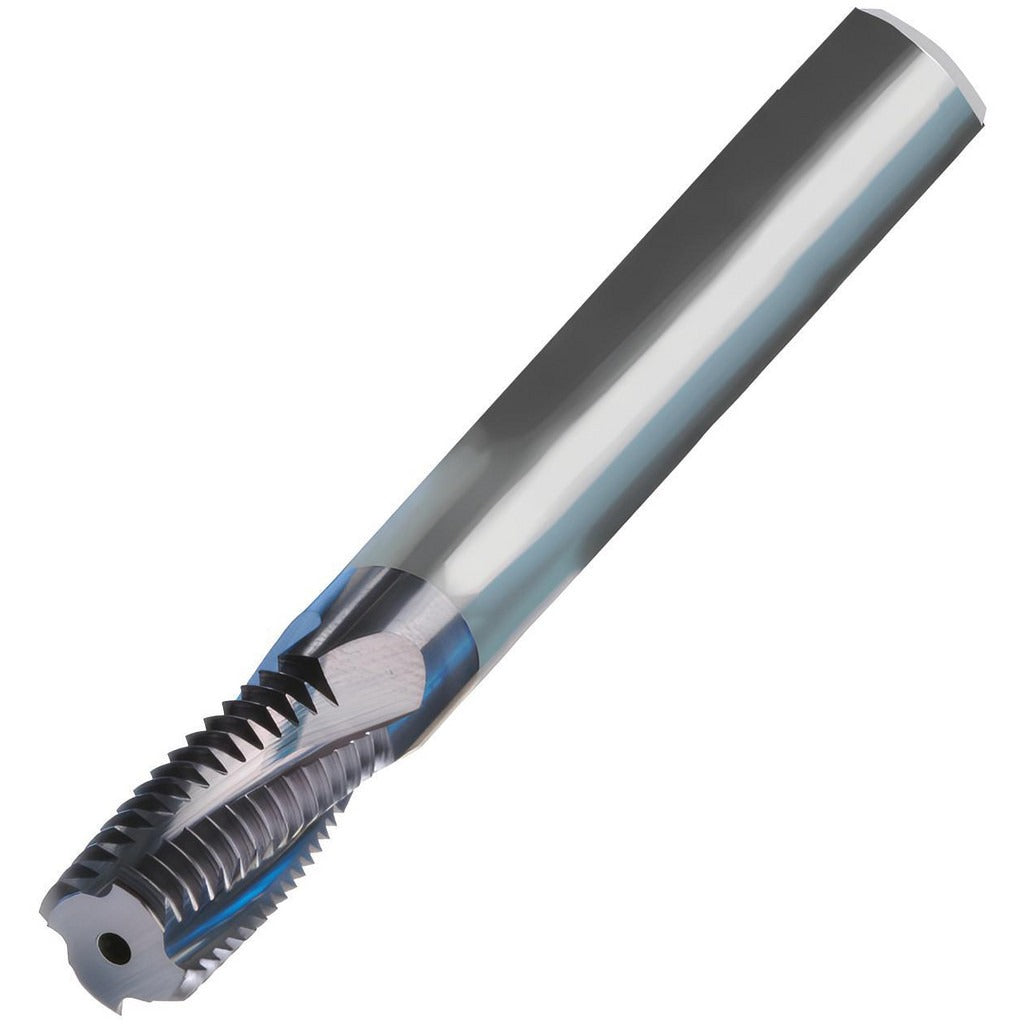

Emuge GFR15106.5007 Thread Mill 10-24 Solid Carbide

Product Description

The EMUGE GFR15106.5007 is a helical flute thread mill designed for cutting internal UNC threads sized 10-24. Built from micrograin solid carbide and coated with TiCN for extended tool life, it features 3 right-hand flutes and a cutting diameter of 0.1360 inches. The length of cut is 0.3950 inches, making it well suited for shallow-to-moderate thread depth applications. This tool mounts on a 1/4-inch shank and carries a shank length of 1-3/8 inches. It is used by machinists and CNC operators in metalworking environments where precise internal thread generation is required.

This thread mill is intended for internal thread milling on CNC machining centers capable of helical interpolation. It targets 10-24 UNC thread forms in materials where micrograin carbide and TiCN coating provide the required wear resistance. Typical applications include production machining of ferrous and non-ferrous workpieces where tap breakage risk makes thread milling the preferred method. No coolant-through capability is included, so external coolant or air blast is used during operation.

Key Features

• Micrograin solid carbide construction for rigidity and edge retention
• TiCN coating reduces friction and extends tool life in abrasive materials
• 3 right-hand helical flutes for smooth chip evacuation during thread milling
• Cuts 10-24 UNC internal threads with a 0.1360-inch cutting diameter
• 0.3950-inch length of cut accommodates standard thread depth requirements for this thread size
• 1/4-inch shank diameter fits common CNC toolholders and collet systems

Compatibility

Designed for use on CNC machining centers capable of helical interpolation for internal UNC thread milling applications in the 10-24 thread size.

Installation Notes

Installation and operation should be performed by a qualified machinist or CNC programmer familiar with thread milling cycles. Secure the shank in a precision collet or toolholder to the appropriate runout specification for the machine being used. Verify spindle speed, feed rate, and helical interpolation parameters in the CAM program or G-code before cutting. External coolant or air blast is recommended since this tool does not include coolant-through capability.
