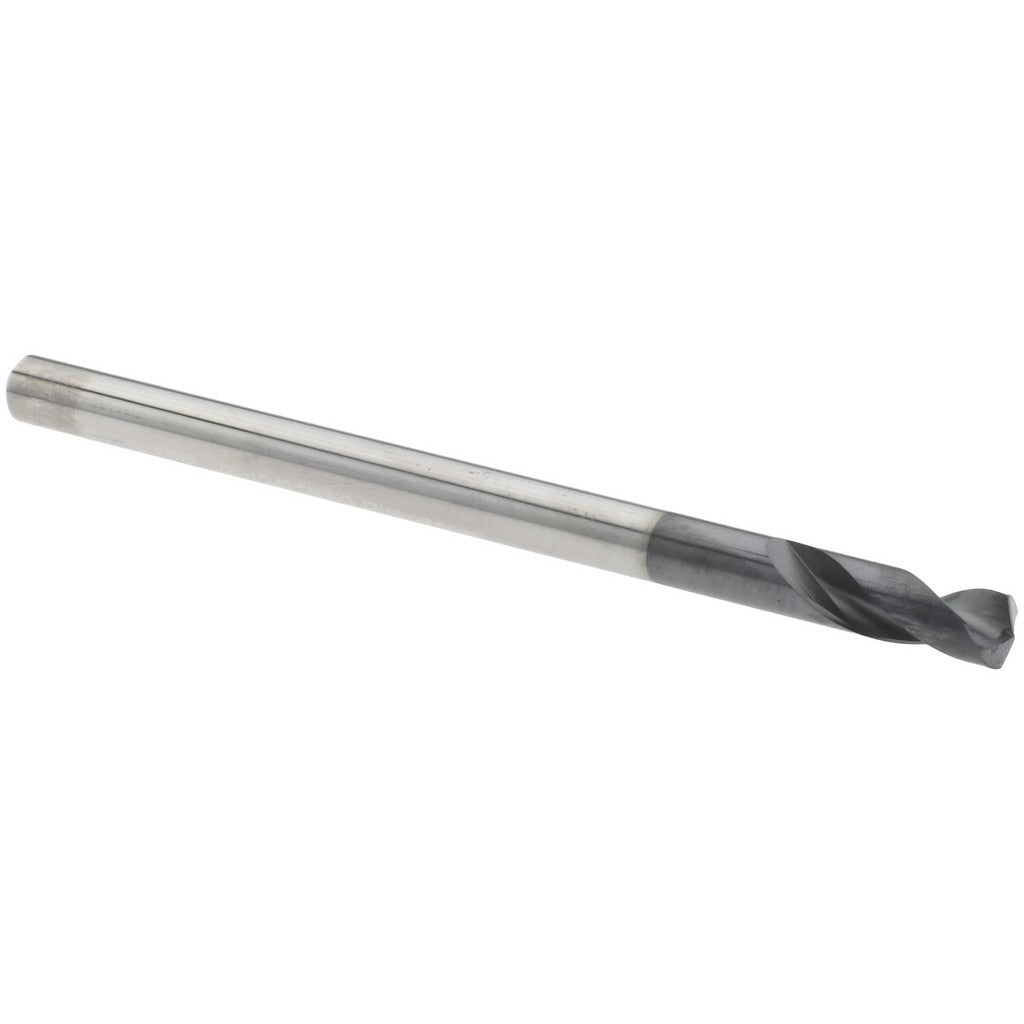

Emuge EFUT3300.0317 Spotting Drill 1/8 in Solid Carbide

Product Description

The EMUGE EFUT3300.0317 is a solid carbide spotting drill designed to create accurate center marks and guide holes before drilling operations. Built to Series EFUT3300 standards, it features a 142-degree point angle that suits a wide range of work materials and helps reduce walking and positional error at hole start. The 0.125 inch cutting diameter and TiAlN coating make this drill well suited for demanding production environments where heat and wear resistance matter. Machinists and tool-room technicians working in precision drilling applications are the primary users of this tool.

This spotting drill is intended for general-purpose spotting and center-locating operations on CNC machining centers and manual drill presses. The right-hand spiral flute geometry and straight cylindrical shank allow direct mounting in standard collets and drill chucks. With a 0.75 inch flute length and 2 inch overall length, it fits compact tooling setups where clearance is limited. It is applicable across steel, stainless, aluminum, and similar materials in both job-shop and production environments.

Key Features

• 142-degree point angle reduces drill walk and improves hole-start accuracy
• Solid carbide construction provides rigidity and wear resistance beyond high-speed steel alternatives
• TiAlN coating extends tool life under high-heat cutting conditions
• Right-hand cut with spiral flutes for efficient chip evacuation during spotting
• Straight cylindrical shank fits standard collets and drill chucks without adapters
• Compact 2 inch overall length suits tight tooling envelopes

Compatibility

Designed as a general-purpose spotting drill compatible with standard straight-shank collet holders and drill chucks accepting a 0.125 inch shank diameter.

Installation Notes

Installation is performed by machinists or tooling technicians familiar with CNC or manual drilling equipment. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from its holder. Seat the shank fully in the collet or chuck and verify runout before beginning a spotting operation. Follow the machine manufacturer and tooling supplier guidelines for spindle speed and feed rates appropriate to the work material.
