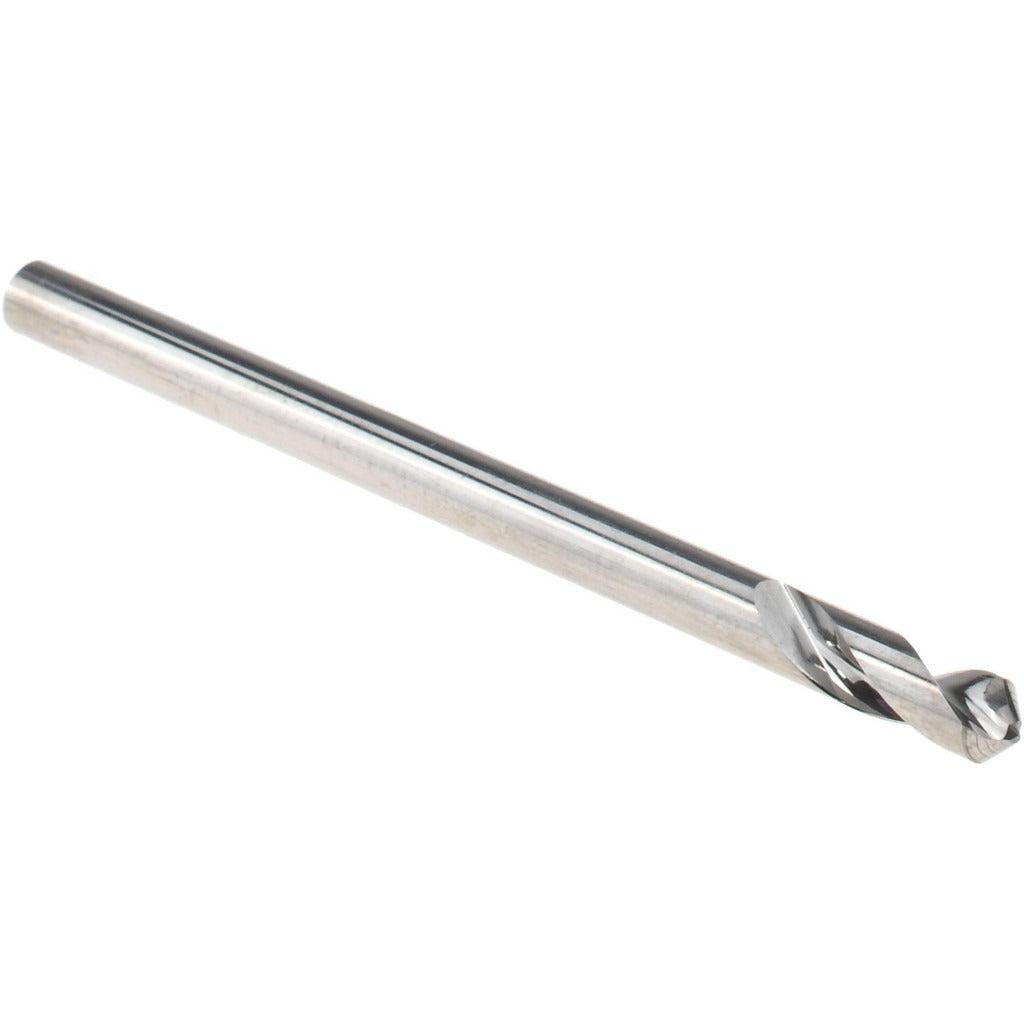

Emuge EFUT3100.0317 Spotting Drill 90 Degree 1/8 in

Product Description

The EMUGE EFUT3100.0317 is a solid carbide spotting drill designed to create precise center-start locations for twist drills and other rotary cutting tools. With a 90-degree point angle and a 0.125-inch cutting diameter, it establishes accurate drill entry points that reduce walking and improve hole positional accuracy. The bright, uncoated finish suits general-purpose spotting operations across a range of workpiece materials. At 2 inches overall length and 0.75-inch flute length, this tool is sized for close-tolerance work on CNC machining centers and manual drill presses alike. It is installed and operated by machinists and tool-and-die professionals in production and job-shop environments.

The EFUT3100.0317 is suited for general-purpose spotting applications in ferrous and non-ferrous materials where a clean, accurate center point is required before full drilling. Its straight cylindrical shank seats directly in standard collet chucks and drill chucks without adaptation. The compact 2-inch overall length makes it practical for setups with limited spindle clearance. Right-hand cutting direction is standard for conventional spindle rotation on most machine tools.

Key Features

• 90-degree point angle for accurate drill-point spotting and countersink starting
• Solid carbide construction for rigidity and wear resistance in general-purpose spotting
• Bright, uncoated finish compatible with a broad range of materials and cutting fluids
• Two-flute spiral design promotes chip clearance during spotting operations
• Straight cylindrical shank fits standard collet chucks and drill chucks directly
• Right-hand cut for conventional CNC and manual spindle rotation

Compatibility

Designed as a general-purpose spotting drill for use in standard collet or drill chuck tooling systems on CNC machining centers and manual drill presses with compatible 1/8-inch shank capacity.

Installation Notes

Installation is performed by qualified machinists. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the straight shank fully and evenly in the collet or chuck, and torque the retention mechanism to the machine manufacturer's specification. Verify runout with a dial indicator before beginning production to protect part accuracy and tool life.
