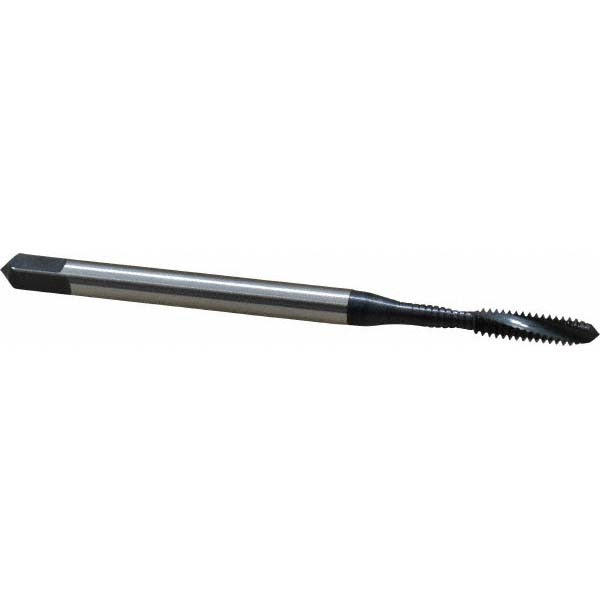

Emuge BU456011.5003 Spiral Flute Tap 4-40 Unc Cobalt

Product Description

The EMUGE BU456011.5003 is a spiral flute tap designed for threading blind holes in titanium and other difficult-to-machine materials. It cuts a 4-40 UNC right-hand thread with a modified bottoming chamfer, allowing the tap to reach close to the bottom of a blind hole. Built from cobalt high-speed steel and finished with an oxide coating, it is engineered for durability under the elevated cutting temperatures common in titanium work. The 2-flute, slow-helix spiral design at 15 degrees ejects chips upward out of the hole. Overall length is 2.205 inches, with a thread length of 0.433 inches and a tapping depth of 0.709 inches.

This tap is intended for precision blind hole threading in a 3BX class of fit, which accommodates the slight oversize needed when tapping titanium alloys. It is suited for use in CNC machining centers, drill presses, and manual tapping applications where tight thread tolerances in small-diameter holes are required. The Rekord D-Ti series is developed specifically for titanium machining applications in aerospace, medical device, and precision manufacturing environments. Coolant-through is not supported on this model.

Key Features

• Modified bottoming chamfer for threading close to the bottom of blind holes
• Cobalt construction provides heat and wear resistance in titanium and hard alloys
• Oxide coating reduces friction and improves chip flow
• 15-degree slow-helix spiral flute ejects chips upward, preventing re-cutting in blind holes
• 3BX class of fit accounts for material spring-back in titanium applications
• Rekord D-Ti series engineering optimized for titanium material application

Compatibility

Designed for blind hole threading in titanium per the Rekord D-Ti series specification. Cuts a 4-40 UNC, 40 threads per inch, right-hand thread to a 3BX class of fit.

Installation Notes

Installation should be performed by a machinist or tooling technician familiar with small-diameter tapping in hard materials. Secure the workpiece fully before tapping and use an appropriate cutting fluid or tapping compound rated for titanium. Apply consistent, controlled torque to avoid tap breakage in this small diameter. Follow shop-standard speeds and feeds for cobalt taps in titanium; do not force the tap or back it out abruptly.
