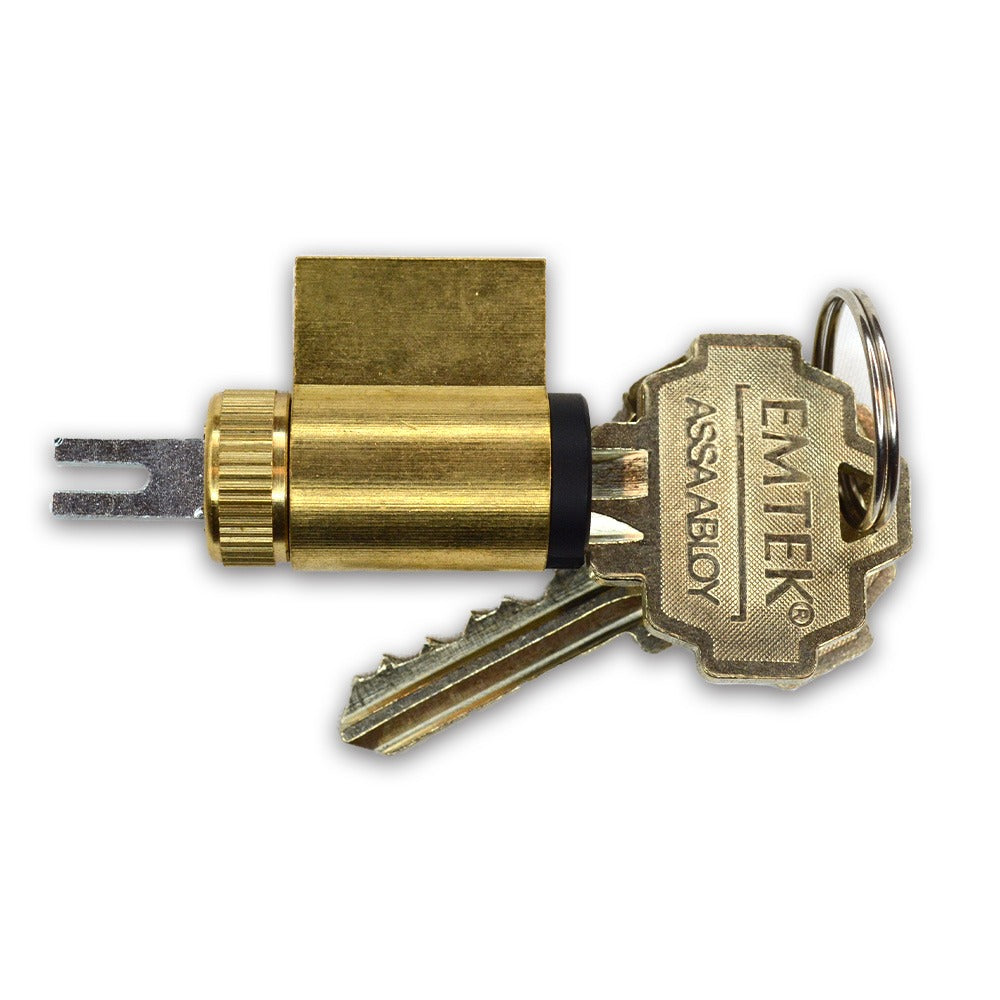

Emtek CY4-PSCHCTOS5-FB Deadbolt Outside Cylinder

Product Description

The EMTEK CY4-PSCHCTOS5-FB is an outside cylinder component designed for double-cylinder deadbolt assemblies. This part provides the exterior keyed entry function in a double-cylinder configuration, requiring a key for operation on both the inside and outside of the door. It is specified for use with US19 and FBS finishes, making it a finish-matched replacement or add-on component for compatible EMTEK deadbolt hardware. Installation is handled by locksmiths, carpenters, or experienced door hardware installers during new construction or retrofit applications. At 0.45 pounds, the unit ships as a single piece and integrates into the deadbolt body without requiring special tools beyond standard installation hardware.

This outside cylinder is suited for residential and light commercial door applications where a double-cylinder deadbolt is specified. Double-cylinder deadbolts are commonly installed on doors with glass panels or sidelights where interior thumb-turn access would present a security risk. The CY4-PSCHCTOS5-FB is compatible with US19 and FBS finish specifications, and is sold as an individual unit. It is custom assembled to order and sold in single-unit quantities, with case packaging available in quantities of 10.

Key Features

• Outside cylinder for double-cylinder deadbolt assemblies requiring keyed exterior entry
• Specified for US19 and FBS finishes for finish-matched installations
• Compact form factor at 4.13 inches length, 2.25 inches width, and 1 inch height
• Lightweight at 0.45 pounds for easy handling during installation
• Sold as a single unit (EA); case quantity of 10 available

Compatibility

Designed for use with EMTEK double-cylinder deadbolt assemblies in US19 and FBS finishes. Verify finish code and cylinder series compatibility with the existing deadbolt body before ordering.

Installation Notes

Installation should be performed by a qualified locksmith or experienced door hardware installer. Before beginning work, ensure the door is fully closed and the existing deadbolt is disengaged. Follow the fastener and alignment specifications provided with the deadbolt assembly. Verify that the finish and cylinder series match the existing hardware to ensure proper fit and consistent appearance.
