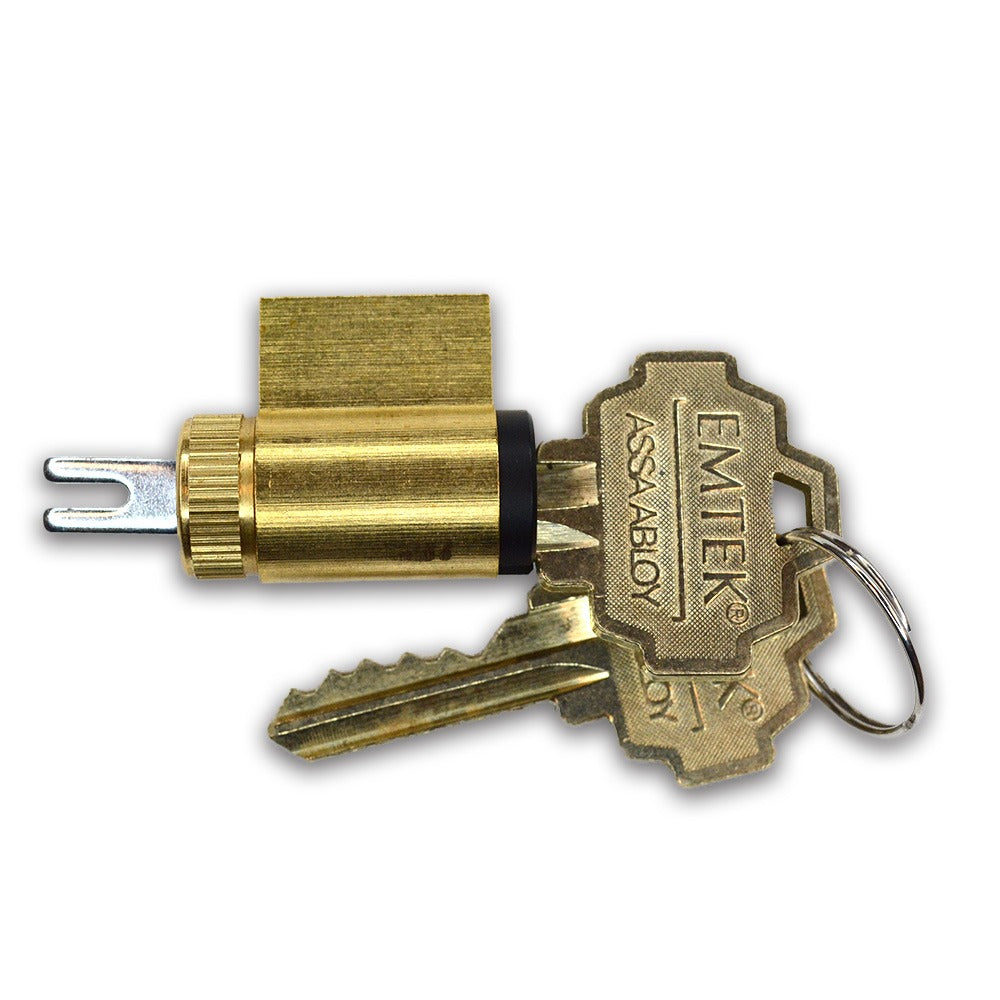

Emtek CY4-PSCHCTIS5-FB Deadbolt Double Inside Cylinder

Product Description

The EMTEK CY4-PSCHCTIS5-FB is a double inside cylinder designed for use with deadbolt locksets in FB, US19, and FBS finishes. This cylinder replaces or supplements the interior thumb-turn with a keyed cylinder, allowing key operation from both sides of the door. It is a hardware component installed by locksmiths, finish carpenters, or skilled general contractors during door hardware assembly or replacement. The unit measures 4.13 inches in length, 2.25 inches in width, and 1 inch in height, and weighs 0.45 pounds, making it a compact, direct-fit component for compatible EMTEK deadbolt configurations.

This inside cylinder is suited for residential and light commercial door hardware applications where double-cylinder deadbolt function is required. Typical installations include doors where interior thumb-turn access must be restricted, such as doors with glass panels or sidelights that could otherwise allow an intruder to reach in and operate the lock. It is sold as a single unit and is intended for use exclusively with EMTEK deadbolts in FB, US19, and FBS finishes.

Key Features

• Double inside cylinder configuration enables keyed operation from both sides of the door
• Compatible with FB, US19, and FBS finish families
• Compact form factor at 4.13 inches length, 2.25 inches width, and 1 inch height
• Lightweight at 0.45 pounds for easy handling during installation
• Sold individually as a single unit replacement or upgrade component

Compatibility

Designed for use with EMTEK deadbolt locksets in FB, US19, and FBS finishes. Consult EMTEK documentation to confirm fitment with specific deadbolt series before ordering.

Installation Notes

Installation is typically performed by a licensed locksmith or experienced finish carpenter. Before servicing any door lock, ensure the door is in a secure, operable position and that existing hardware is fully removed before inserting the new cylinder. Follow local building codes regarding egress requirements, as double-cylinder deadbolts may be restricted or require specific conditions in certain occupancy types. Do not force the cylinder into the housing; verify finish and keying compatibility prior to installation.
