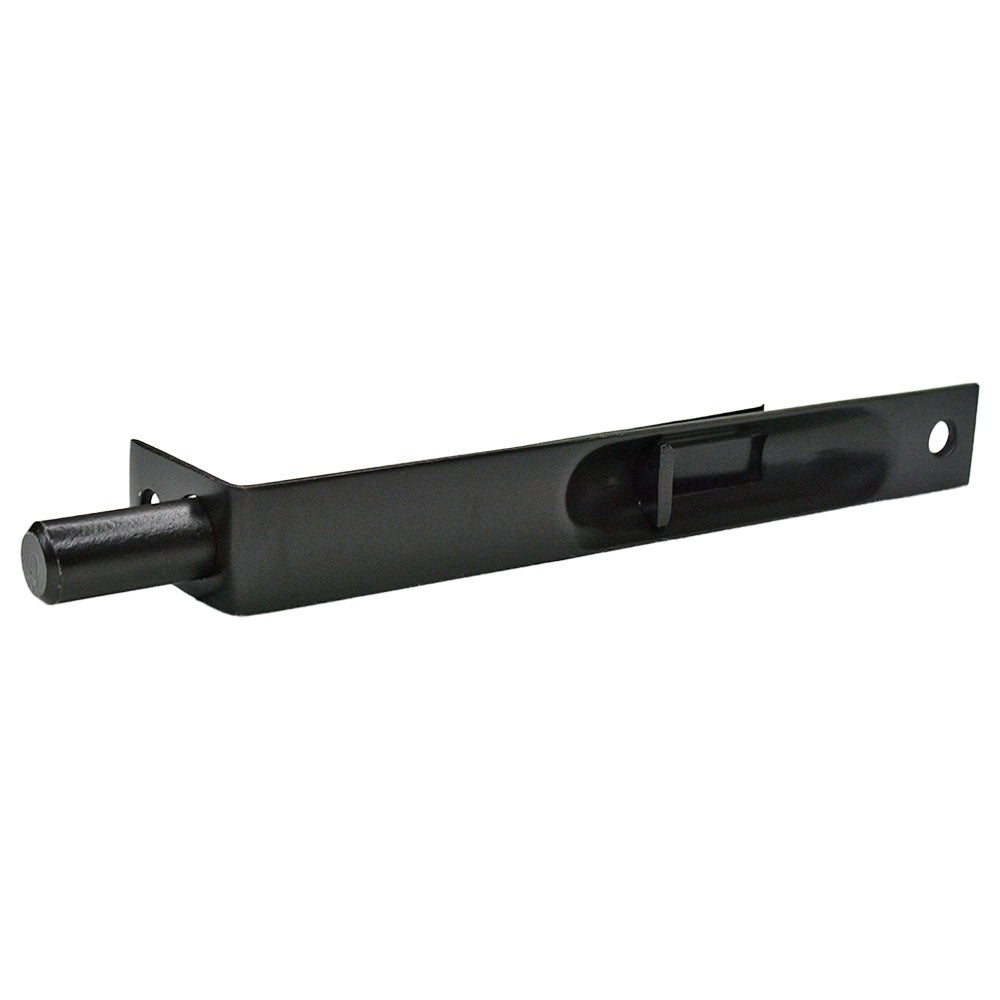

Emtek 8501US10B Square Corner Flush Bolt Oil Rubbed Bronze

Product Description

The EMTEK 8501US10B is a square corner flush bolt designed for door edge installation in residential and light commercial applications. Flush bolts are used to secure inactive doors in pairs, sliding into a strike in the door frame or floor to hold the door in a fixed position when not in use. This unit ships in an Oil Rubbed Bronze finish and measures 6.25 inches in length, 1.5 inches in width, and 1.25 inches in height. Installation is typically performed by a finish carpenter, door hardware installer, or general contractor during door hardware rough-in or finish stages.

This flush bolt is suited for use on French doors, double entry doors, and other paired door assemblies where one leaf must remain stationary. The square corner faceplate profile seats flush against the door edge without requiring a radius-corner mortise cut, making it compatible with standard square-edge mortise prep work. A single unit is included per order.

Key Features

• Square corner faceplate for standard mortise prep — no radius routing required
• Oil Rubbed Bronze finish for a dark, hand-rubbed appearance
• 6.25-inch body length for secure door edge engagement
• Compact 1.5-inch width fits standard door edge mortise widths
• Sold individually — single unit per order

Compatibility

Designed as an OEM-style replacement or new-installation flush bolt for residential and light commercial paired door assemblies with square corner door edge mortise preparation.

Installation Notes

Flush bolts are installed by finish carpenters or skilled door hardware installers and require mortising into the door edge with a chisel or router. Ensure the door is properly supported and all hinge hardware is set before mortising the flush bolt pocket. Strike plates must be accurately located in the frame or floor to allow smooth bolt engagement. Follow local building codes for any fire-rated or exterior door assembly requirements.
