Emtek 2101US4 Pass Pocket Door Lock Satin Brass

Product Description

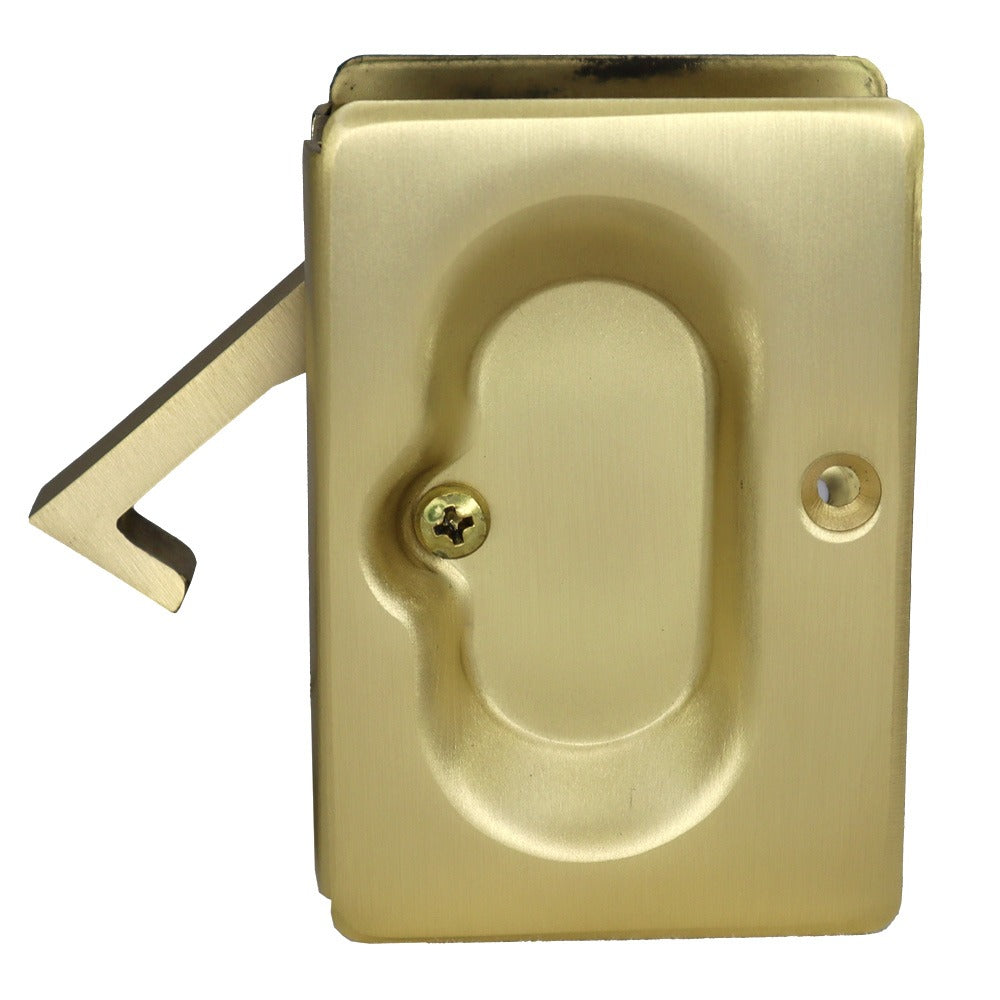

The EMTEK 2101US4 is a pass-style pocket door lock designed for sliding pocket doors in residential and light commercial applications. It installs into the edge of the door to provide a simple passage function without a keyed or privacy mechanism, allowing the door to be pulled open or pushed closed from either side. The satin brass finish gives it a warm, classic appearance suited to traditional and transitional interiors. This lock fits door thicknesses from 1-3/8 inches to 1-3/4 inches, making it compatible with most standard interior door stock. It is sold as a single unit and is typically installed by a carpenter or finish trim contractor.

This pocket door lock is intended for interior sliding pocket doors in residential settings such as living rooms, dining rooms, bathrooms, and home offices. It is appropriate wherever a pocket door needs a functional pull and latch point without a locking mechanism. Installers working on new construction or remodel projects will find it sized for standard interior door thicknesses. The compact body keeps the hardware low-profile when the door is open inside the wall cavity.

Key Features

• Pass function — no lock, suitable for common areas where access restriction is not required
• Fits door thicknesses from 1-3/8 inches to 1-3/4 inches
• Satin brass finish for a consistent, warm tone on interior doors
• Compact body measuring approximately 3.7 inches long by 2.7 inches wide by 1.7 inches tall
• Sold individually, one unit per order

Compatibility

Designed as an OEM-style replacement or new-installation hardware for standard residential interior pocket doors with a door thickness between 1-3/8 inches and 1-3/4 inches.

Installation Notes

Pocket door locks are typically installed by a finish carpenter or experienced general contractor using standard wood chisels, a drill, and hole saws sized per the manufacturer template. The door should be removed from the track or fully accessible before mortising the edge for the lock body. Follow all local building codes for interior door hardware. Do not force the latch body into an undersized mortise, as this can crack the door stile.
