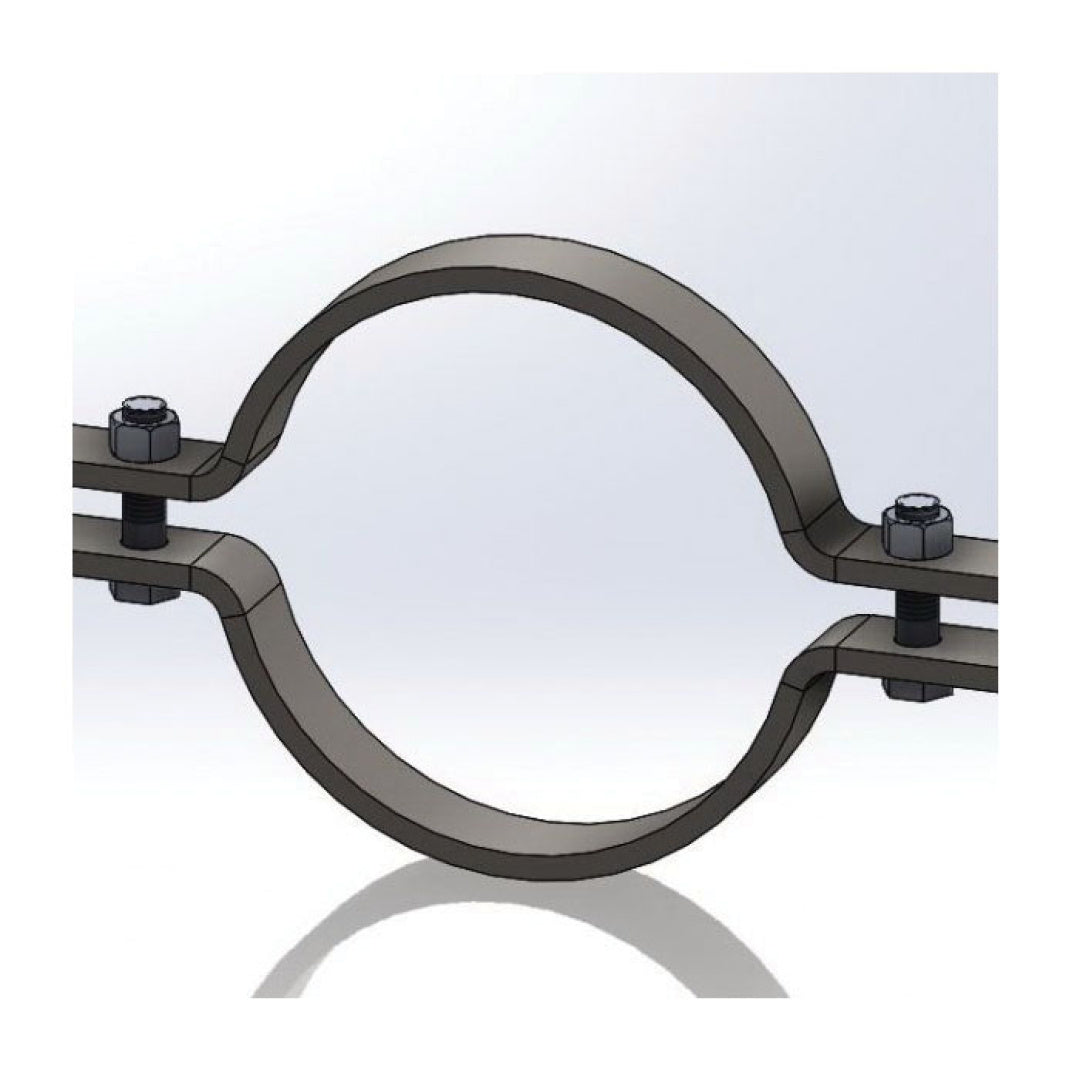

Empire Industries 50G1000 Riser Clamp Standard Electro-Galvanized (10 in IPS)

Product Description

Empire Industries 50G1000 is a standard 50-G riser clamp designed to support and stabilize vertical 10-inch pipe runs. Constructed of carbon steel with an electro-galvanized finish, the clamp features a 5/8 in diameter bolt, a 10-3/4 in outside diameter, a 21 in overall length, and a rated load capacity of 2,500 lb for pipe support and hanging applications.

• Carbon steel construction with electro-galvanized finish; plastic-coated option available with zinc-plated hardware
• Rated load capacity: 2,500 lb; 5/8 in diameter bolt for secure fastening
• Dimensions: 21 in overall length; outside diameter 10-3/4 in; designed for 10 in nominal pipe

Product Highlights

Standard 50-G riser clamp for 10 in pipe, 2,500 lb capacity, electro-galvanized carbon steel.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 50G1000

Technical Specifications

• Manufacturer: Empire Industries
• Brand: Empire Industries
• Manufacturer Part Number (MPN): 50G1000
• Series: 50-G
• Model Type: Standard Riser Clamp
• Material: Carbon Steel
• Finish/Coating: Electro-Galvanized
• Nominal Pipe Size: 10 in
• Outside Diameter: 10.75 in
• Bolt Diameter: 5/8 in
• Load Capacity: 2500 lb
• Overall Length: 21 in
• Approvals/Certifications: Complies with Federal Specification A-A-1192 A (Type No 8); WW-H-171-E (Type No 8); MSS SP-58 and MSS SP-69; cULus listed
• UPC: 663027029999
• Product Category: Pipe & Strut Clamps / Plumbing
• Plastic Coating Option: Available; plastic coated with zinc-plated hardware to prevent pipe contact and reduce noise/vibration
• Corrosion Recommendation: Stainless steel riser clamps recommended for corrosive environments
