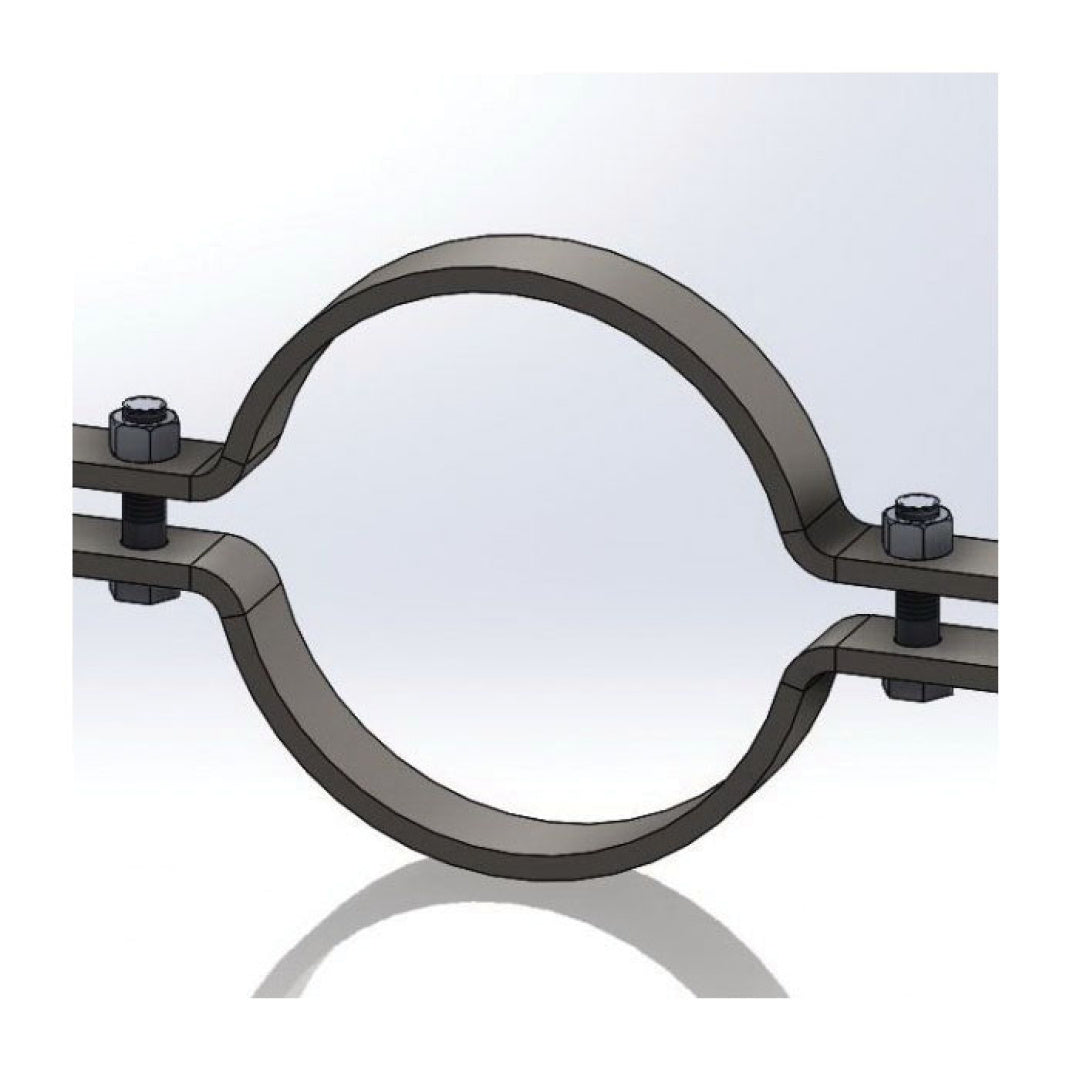

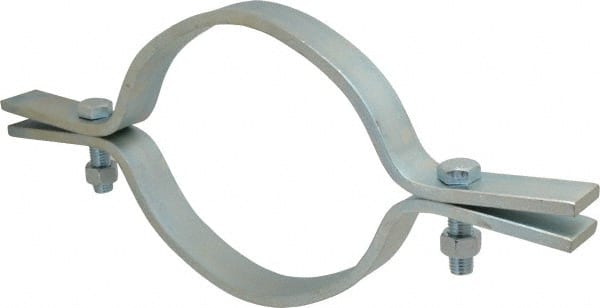

Empire Industries 50G0800 Figure 50 Riser Clamp 8 in. (E50G0800)

Product Description

Empire Industries 50G0800 is an electro-galvanized carbon steel Figure 50 riser clamp designed to support and stabilize vertical 8 in pipe runs. The clamp fits 8 in nominal pipe (8.625 in outside diameter), has a 5/8 in diameter bolt and a 2,500 lb load capacity, and is supplied with zinc-plated hardware. Plastic-coated and stainless steel options are available for noise reduction and corrosive environments.

• Fits 8 in nominal pipe (8.625 in / 8-5/8 in outside diameter); clamp outside diameter 8-5/8 in
• Carbon steel construction with electro-galvanized finish; zinc-plated hardware; plastic-coated option available
• 5/8 in bolt diameter, 2,500 lb load capacity, overall length 18-5/8 in

Product Highlights

Standard Figure 50 riser clamp for vertical 8 in pipe runs; electro-galvanized carbon steel; 2,500 lb capacity; 5/8 in bolt.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 50G0800

Technical Specifications

• Brand: Empire Industries
• MPN: 50G0800
• Replacement MPN: E50G0800
• Series: 50-G
• Type: Standard riser clamp
• Material: Carbon steel
• Finish/Coating: Electro-galvanized; zinc-plated hardware (plastic-coated option available)
• Nominal Pipe Size: 8 in
• Pipe Outside Diameter: 8.625 in (8-5/8 in)
• Clamp Outside Diameter: 8-5/8 in
• Load Capacity: 2500 lb
• Bolt Diameter: 5/8 in
• Overall Length: 18-5/8 in
• Material Dimensions: 3/8 x 1-1/2 in
• Certifications/Approvals: U.L. / U.L.C. listed (sizes 2 in - 8 in); complies with Federal Specification A-A-1192 A Type No 8 and WW-H-171-E Type No 8; MSS SP-58 and SP-69; cULus listed
