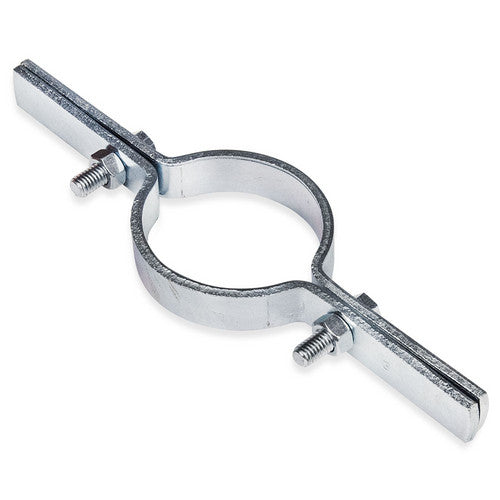

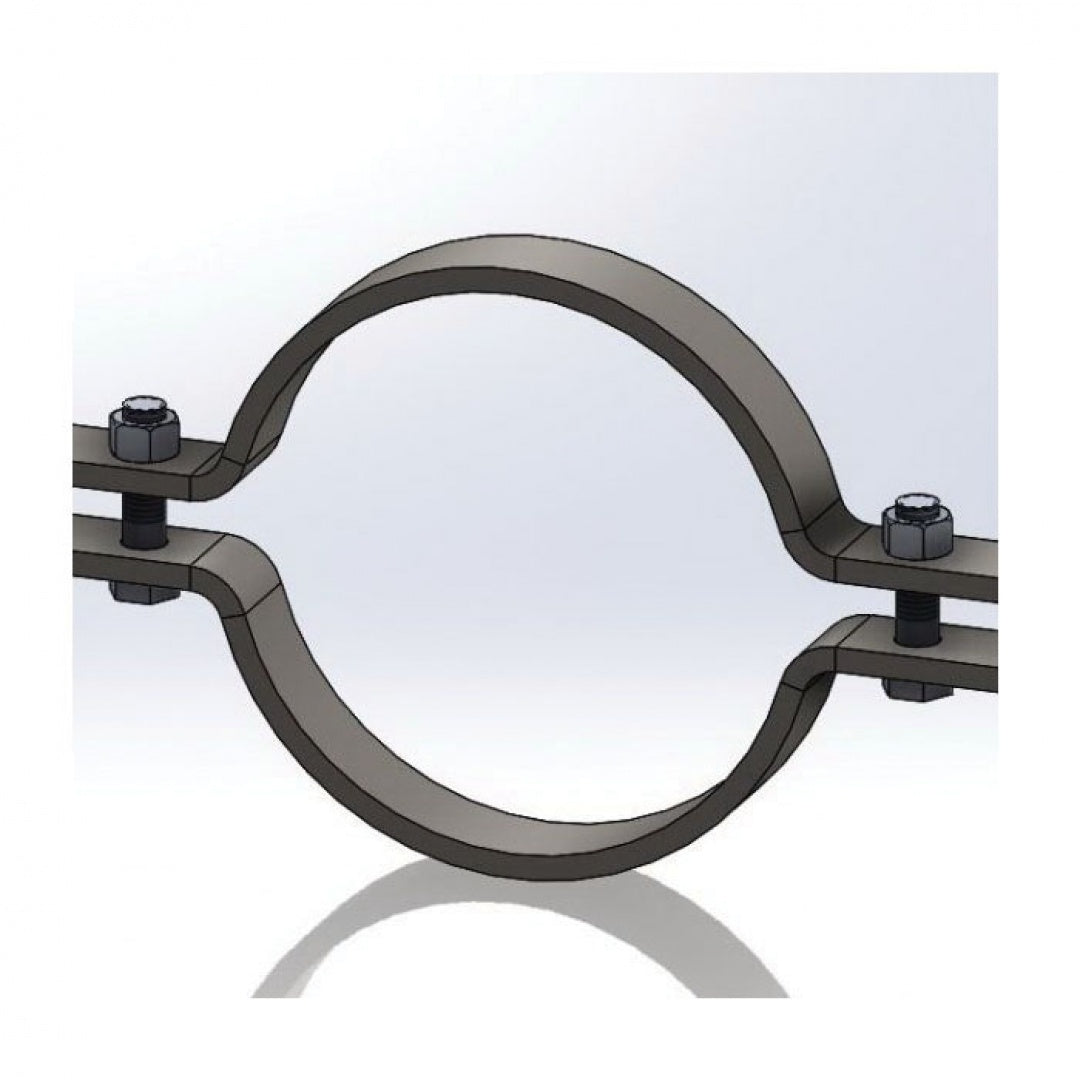

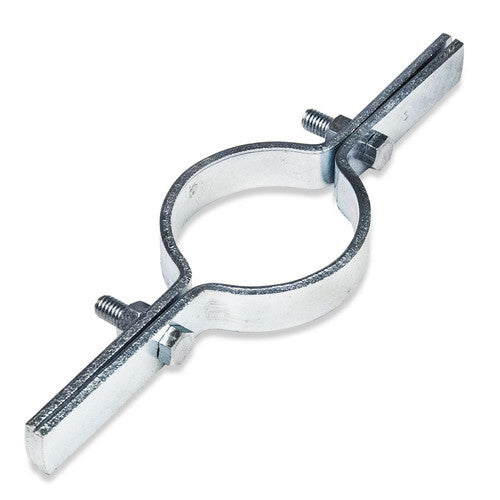

Empire Industries 50G0300 Figure 50 Riser Clamp 3 in.

Product Description

The EMPIRE INDUSTRIES 50G0300 Figure 50 standard riser clamp is designed for supporting and stabilizing vertical pipe runs. It is constructed from carbon steel with an electro-galvanized finish. This clamp complies with Federal Specification A-A-1192 A Type No 8 and WW-H-171-E Type No 8.

• Designed for supporting and stabilizing vertical pipe runs
• Plastic coating prevents pipe from coming in contact with the clamp
• Designed to reduce noise, vibration and prevent electrolysis between pipe and clamp

Product Highlights

Designed to support and stabilize vertical pipe runs, the Empire Industries riser clamp is electro-galvanized for durability.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 50G0300

Technical Specifications

• Bolt Diameter: 3/8 in
• Finish: Electro-Galvanized
• Load Capacity: 530 lb
• Material: Carbon Steel
• Outside Diameter: 3-1/2 in
• Pipe Size: 3 in
• Series: 50-G
• Type: Standard
• Clamp Type: Riser
• Nominal Pipe Size: 3in
• Tube Diameter (Decimal Inch): 3.5000
• Fractional Tube Diameter: 3-1/2
• Coating/Finish: Electro Galvanized
• Application: Pipe
• Collection: Figure 50
• Diameter - Outside: 3-1/2 in
• Fits Pipe Size: 3 in
• Length: 11-13/16 in
• MSS: MSS SP-58, MSS SP-69 Type 8
• Product Type: Riser Clamp
• UL Listed: Yes
• Work Load Limit: 530 lb
