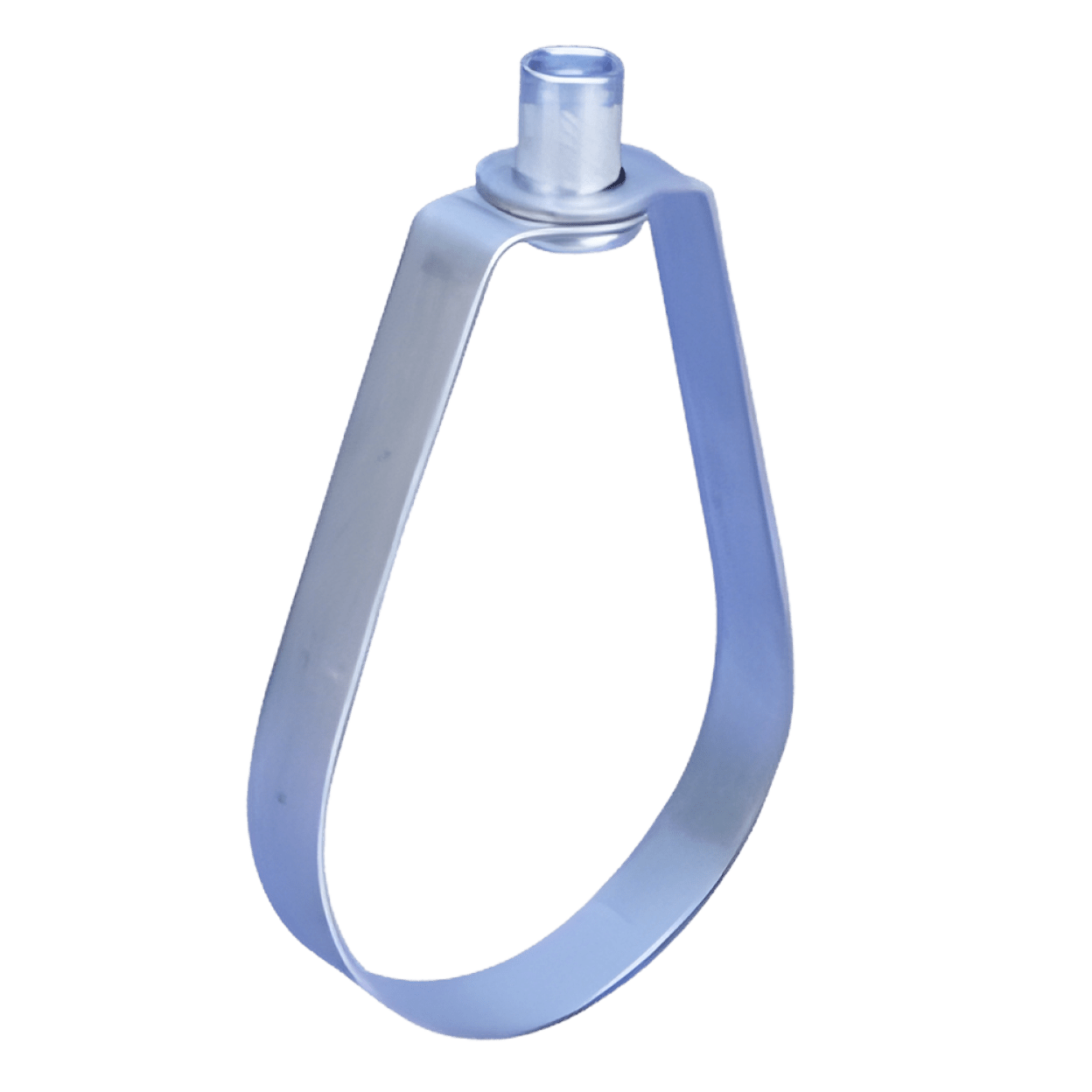

EMPIRE INDUSTRIES 1000125EG 100 Series Swivel Loop Hanger Heavy Duty 1-1/4

Product Description

The EMPIRE INDUSTRIES 1000125EG is a heavy-duty swivel loop hanger designed for non-insulated pipe. It is made from pregalvanized steel and accommodates pipe sizes from one half inch to eight inches. This loop hanger features a retained insert nut for secure assembly and is suitable for stationary applications.

• Heavy-duty adjustable band hanger
• Electro-zinc plated surface for durability
• Suitable for stationary non-insulated pipe lines

Product Highlights

This product conforms to Federal Specification WW-H-171 and is UL listed and FM approved for strength and performance. It can support a maximum load of three hundred pounds.

Product Information

Standard Information

• Manufacturer: EMPIRE INDUSTRIES
• Part Number: 629115

Technical Specifications

• Dimension A: 3-9/16 inches
• Dimension B: 1 inch
• RS: 3/8 inches
• Pipe Size: 1-1/4 inches
• Max Recommended Load: 300 pounds
• Finish: Electro-zinc Plated
