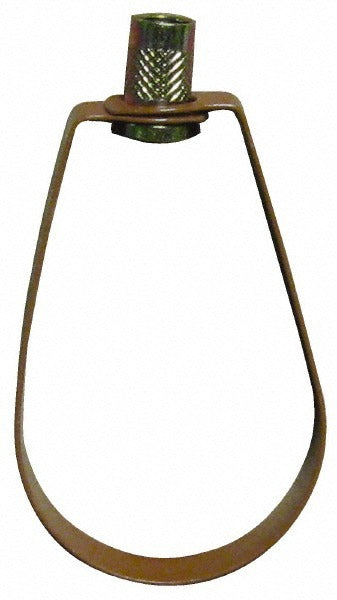

Empire 310CTI0350 Emlok Swivel Ring Hanger 3.5 in Pipe

Product Description

The EMPIRE 310CTI0350 is an Emlok swivel ring hanger designed to support and suspend pipe runs from threaded rod in mechanical, plumbing, and HVAC piping systems. Constructed from carbon steel with a copper-plated finish, it accepts 3-1/2 inch nominal pipe and uses a 1/2 inch rod for overhead anchoring. The swivel design allows the ring to rotate, compensating for minor angular misalignment during installation. Rated at 600 pounds load capacity, this hanger is suited for both commercial and industrial piping applications where reliable, code-compliant pipe support is required. Licensed plumbers, pipefitters, and mechanical contractors are the primary installers.

This hanger is used in suspended piping systems where pipe must be supported from structural members, beams, or concrete overhead. It is appropriate for horizontal pipe runs in commercial mechanical rooms, industrial facilities, and multi-family residential plumbing rough-ins. The 3-1/2 inch nominal pipe size fits standard Schedule 40 and Schedule 80 pipe of that dimension. The copper-plated finish provides a base level of corrosion resistance suitable for typical indoor dry or conditioned spaces.

Key Features

• Swivel ring design accommodates minor angular misalignment without binding
• 3-1/2 inch nominal pipe size fits standard pipe diameters at that dimension
• 1/2 inch rod size for compatibility with standard threaded hanger rod
• 600 pound load capacity for dependable overhead pipe support
• Carbon steel construction with copper-plated finish for corrosion resistance in typical indoor environments

Compatibility

Designed as an OEM-style replacement and standard-fit swivel ring hanger for 3-1/2 inch nominal pipe suspended on 1/2 inch threaded rod in commercial and industrial mechanical piping systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and ASME B31 piping support standards. Shut off and isolate the piping system before repositioning or replacing existing hangers. Use properly rated threaded rod and structural anchors to match the 600 pound load rating of this hanger. Do not exceed the rated load capacity or use this hanger in applications with significant pipe movement or vibration without additional vibration isolation.
