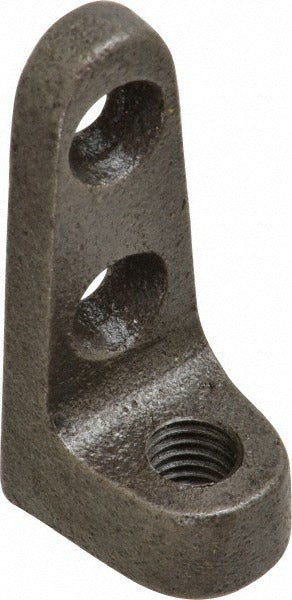

Empire 153B0050 Side Beam Connector 1/2 Inch Rod

Product Description

The EMPIRE 153B0050 is a side beam connector designed to suspend threaded rod from structural steel beams in mechanical, electrical, and plumbing support systems. The connector accepts 1/2-inch diameter threaded rod and carries a rated load capacity of 480 pounds. Constructed from malleable iron with an electro galvanized finish, it resists corrosion in typical indoor mechanical room and commercial construction environments. Licensed trades use this fitting when routing pipe hangers, electrical conduit supports, or HVAC ductwork drop rods from beam flanges without drilling or welding.

This side beam connector suits commercial and light industrial applications where threaded rod must be anchored to the lower flange of an I-beam or wide-flange structural member. It is commonly installed by pipefitters, plumbers, electricians, and HVAC mechanics during rough-in on new construction or retrofit projects. The 1/2-inch rod size is the most common hanger rod diameter across all four trades, making the 153B0050 a general-purpose fitting for mixed support grids.

Key Features

• 480-pound load capacity rated for typical mechanical and electrical hanger loads
• Accepts 1/2-inch diameter threaded rod
• Malleable iron construction provides strength and resistance to impact during installation
• Electro galvanized finish for corrosion protection in indoor mechanical environments
• Side beam mounting style clamps to beam flange without drilling or welding

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2-inch threaded rod hanger assemblies on standard structural steel beam flanges in commercial and light industrial mechanical systems.

Installation Notes

Installation is performed by qualified pipefitters, plumbers, electricians, or HVAC mechanics following applicable codes such as NEC, IPC, IFGC, and SMACNA as appropriate to the trade. Verify the structural beam flange thickness is within the clamp range before torquing the connector hardware. Do not exceed the 480-pound rated load capacity per connector point. Inspect the electro galvanized finish for damage before installation in damp or wet-rated spaces where additional corrosion protection may be required.
