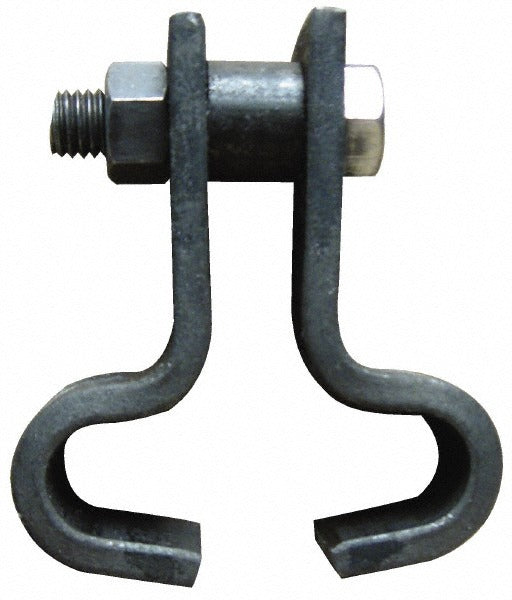

Empire 150G0208 Center Beam Clamp 3000 Lb 8 Inch

Product Description

The EMPIRE 150G0208 is a center beam clamp rated for 3,000 pounds of load capacity, designed to attach to structural I-beams and H-beams at the beam flange. Fabricated from carbon steel, this clamp provides a secure, rigid connection point for hoists, trolleys, rigging hardware, and other suspended loads. It accepts a maximum flange width of 8 inches, making it suited for medium to large structural beam sizes commonly found in industrial facilities, warehouses, and maintenance bays. Rigging professionals and millwrights typically install this hardware as part of overhead lifting and material handling systems.

This center beam clamp is used in industrial and commercial settings where a fixed or semi-permanent attachment to a structural beam is required. Typical applications include overhead hoist mounting, chain block suspension, rigging point installation, and similar material handling setups. The 3,000-pound load rating makes it appropriate for moderate-duty lifting tasks on standard structural steel beams where a secure, bolt-on connection to the beam flange is needed.

Key Features

• 3,000-pound rated load capacity for moderate-duty overhead lifting applications
• Accepts beam flange widths up to 8 inches
• Carbon steel construction for strength and durability in industrial environments
• Center beam clamp style provides a centered, balanced attachment point on the beam
• Sold as a single unit — no minimum order beyond one piece

Compatibility

Designed as an OEM-style replacement or direct-install center beam clamp for structural I-beams and H-beams with flange widths up to 8 inches in industrial and commercial overhead rigging systems.

Installation Notes

Installation of beam clamps should be performed by a qualified rigger or millwright familiar with overhead lifting hardware and applicable ASME B30 standards. Verify that the structural beam flange width does not exceed 8 inches and that the beam is rated to carry the intended load before installation. De-energize and lock out any nearby electrical equipment and relieve any suspended loads before attaching or removing the clamp. Never exceed the rated load capacity of 3,000 pounds and inspect the clamp for cracks, deformation, or thread damage before each use.
