EMERSON THQL32050 50Amp Circuit Breaker

Product Description

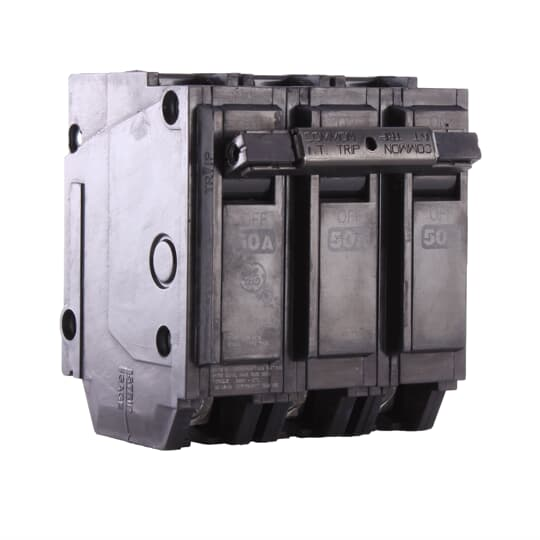

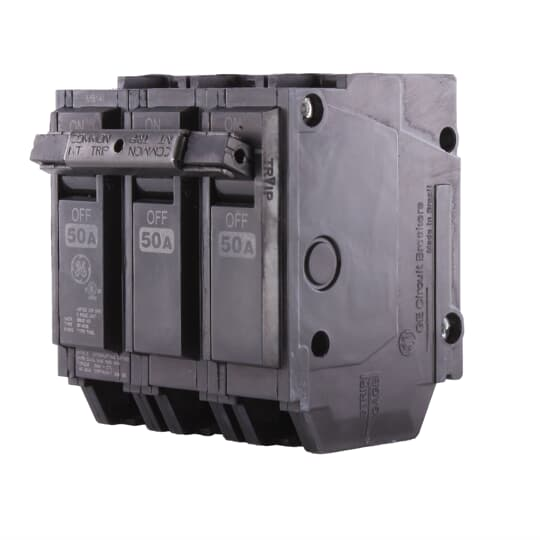

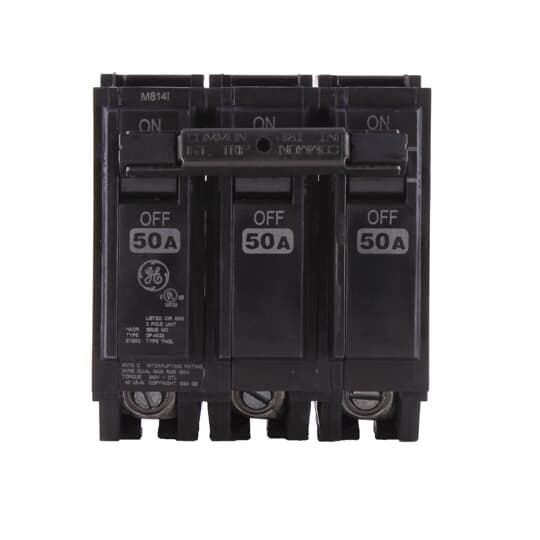

The EMERSON THQL32050 is a three-pole, 50 AMP circuit breaker designed for residential and commercial electrical systems. Part of the Q Line series, this breaker provides reliable protection in all environments. It features a thermal-magnetic design that allows for compact installation in load centers and lighting panels. Equipped with a voltage rating of 240V and an interrupting capacity of 10kAIC, it safeguards circuits against overcurrents and short circuits.

• Combines thermal and magnetic trip elements for fast response to electrical faults.
• Compact design enhances space efficiency in electrical panels.
• Rated at 10kAIC, capable of handling significant electrical faults.

Product Highlights

This circuit breaker is designed for quick installation and safety. Its thermal-magnetic function ensures that dangerous conditions are detected promptly, providing peace of mind in critical applications.

Product Information

Standard Information

• Brand: EMERSON
• MPN: THQL32050

Technical Specifications

• Amperage: 50 A
• Poles: 3
• Voltage Rating: 240 V
• Interrupting Capacity: 10 kAIC
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• System Voltage: 120 Vac, 120/240 Vac, 240 Vac
• Special Markings: HACR (Heating, Air Conditioning, and Refrigeration)
• Suitable for Reverse Feed: Yes
• Wire Size: 14 To 8 Awg (Copper), 12 To 8 Awg (Aluminum)
