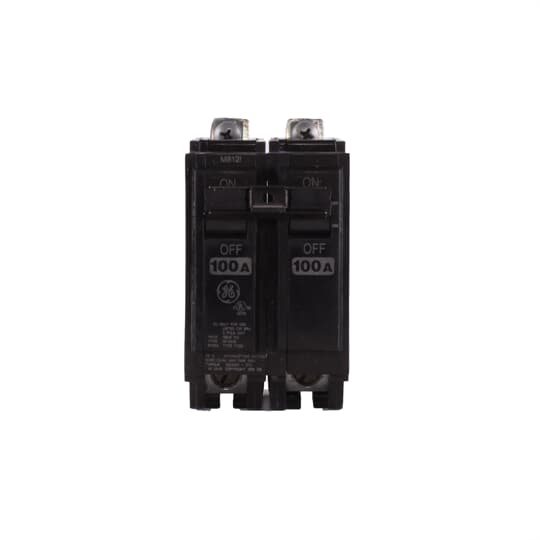

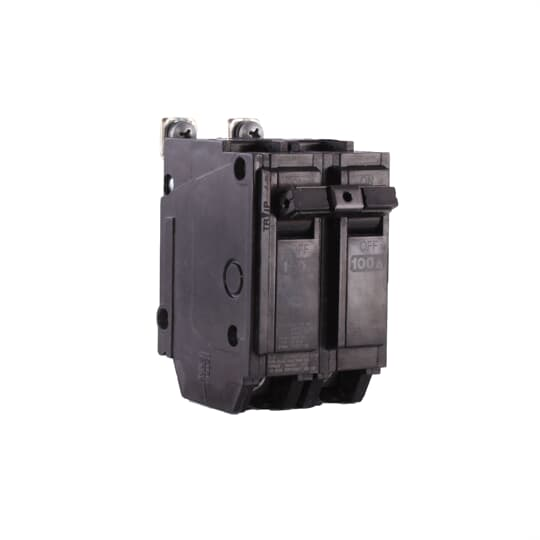

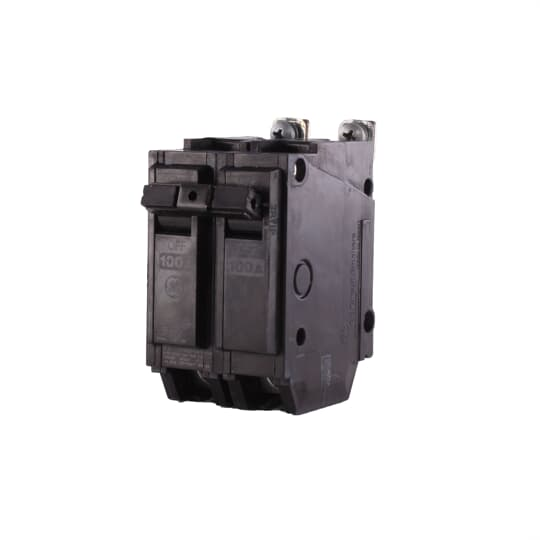

Emerson THQB21100 THQB MCB 100A 10kA 2P

Product Description

The Emerson GE THQB21100 is a two-pole, thermal-magnetic circuit breaker that serves both residential and commercial electrical systems. With a current rating of 100A and a breaking capacity of 10kA, this circuit breaker is designed to protect your electrical distribution system from overloads and short circuits. As part of the Q Line series, it features a compact design with a width of one inch per pole and includes Quick-make / Quick-break mechanisms for efficient operation.

• 100A current rating
• 10kA breaking capacity
• Two-pole thermal magnetic design

Product Highlights

Ideal for use in electrical distribution and control, the THQB21100 provides secure and reliable protection through its bolt-on design for load center and lighting panel connections.

Product Information

Standard Information

• Brand: Emerson
• MPN: THQB21100

Technical Specifications

• Poles: 2P
• Voltage: 120/240V AC
• Amps: 100A
• Rating - kA IR: 10
• Mounting: Panel, Bolt-On
• Line Terminal: Bolt-On Tab
• Load Terminal: Lug
• Type: Type THQB
• Applications: Electrical distribution and control
