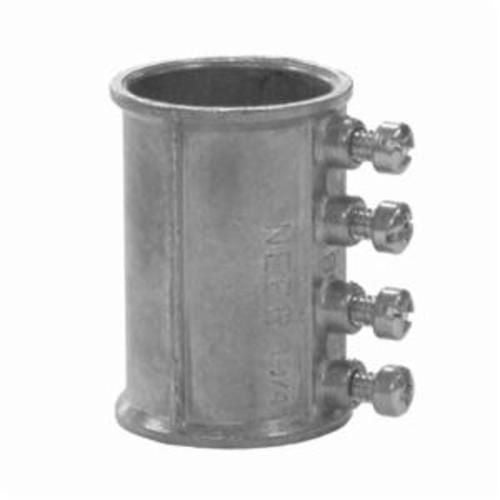

Emerson TC-514 APP 1-1/4 DC EMT S-SCR CPLG

Product Description

The Emerson TC-514 is a set screw coupling designed for use with EMT conduit. It features a straight design and is part of the TC-500 series. The coupling is made from die-cast zinc, ensuring durability in various applications.

• Designed for 1-1/4 inch EMT conduit.
• Pre-set and pre-staked set screws for secure connections.
• Suitable for use in concretetight and dry or damp locations.

Product Highlights

This coupling efficiently joins lengths of EMT conduit, providing a reliable connection for electrical wiring systems.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 68785510514

Technical Specifications

• Application: To join lengths of steel EMT for concretetight, dry or damp locations
• Color: Metallic
• Dimensions: 1.98 inches OD x 2.5 inches L
• Manufacturer Part Number: TC-514
• Material: Die Cast Zinc
• Series: TC-500
• Size: 1-1/4 inches
• Standards/Approvals: UL 514B File No. E35001|CSA 208044|CSA C22.2 No. 18.3|NEMA FB-1
• Suitable For Use With: EMT Conduit
• Type: Straight
