Emerson SR-25021 OZ-G SR-25021 2-1/2 1.8 to 2.1 CORDCON

Product Description

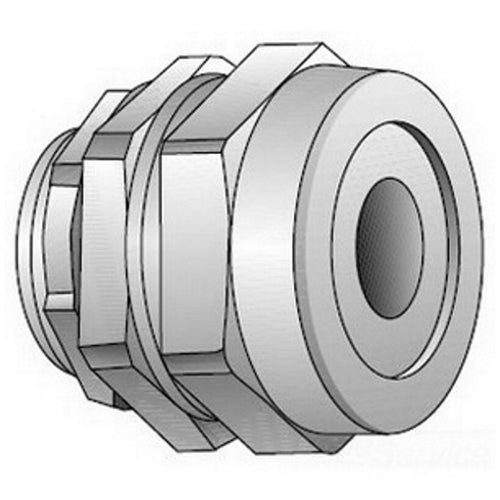

The Emerson SR-25021 is a strain relief connector designed for electrical applications. This product features a straight design suitable for trade sizes of two and one-half inches with cable opening sizes between one point eight to two point one inches. Made from malleable iron and zinc plated, it is built for durability in commercial and industrial environments.

• Made from malleable iron with zinc plating
• Temperature rating of one hundred ninety-four degrees Fahrenheit
• UL listed for NEMA four and six applications

Product Highlights

The SR-25021 is ideal for securing electrical connections in wet or oily conditions, ensuring watertight and oiltight seals.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312650870

Technical Specifications

• Application: Commercial and Industrial Applications
• Cable Openings: 1.8 to 2.1 inches
• Connection Type: MNPT
• Dimensions: 4.06 inches Diameter x 2.5 inches Length
• Finish: Zinc Plated
• Manufacturer Part Number: SR-25021
• Material: Malleable Iron
• Series: SR Series
• Standards/Approvals: UL File No. E11857 Listed, CSA 009795 Certified, RoHS Compliant, ARRA Compliant
• Temperature Rating: 194 degrees Fahrenheit
• Trade Size: 2-1/2 inches
• Type: Straight
