Emerson RN-50 APP 1/2 Offset Nipple

Product Description

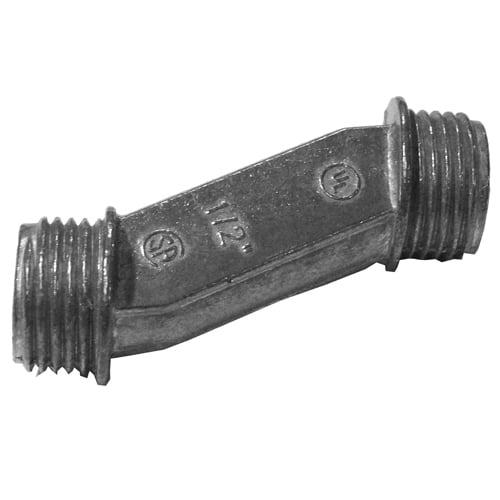

The Emerson RN-50 is an offset conduit nipple designed for use with cabinets and enclosures. Made from die cast zinc, this product provides a reliable connection while allowing for a three-quarter inch offset between outlet boxes or enclosures. The dimensions are zero point ninety-four inches in diameter and two point forty-five inches in length.

• Size: 1/2 inches
• Material: Die Cast Zinc
• Type: Offset

Product Highlights

This conduit nipple is suitable for various electrical applications and complies with multiple standards including CSA and UL.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 68785529050

Technical Specifications

• Application: Used to provide a 3/4 in offset connection between two outlet boxes or enclosures
• Dimensions: 0.94 in Dia x 2.45 in L
• Manufacturer Part Number: RN-50
• Material: Die Cast Zinc
• Series: RN Series
• Size: 1/2 in
• Standards/Approvals: CSA C22.2 No. 18.3|CSA 70872|NEMA FB-1|UL 514B File No. E32539
• Suitable For Use With: Cabinets and Enclosures
• Type: Offset
