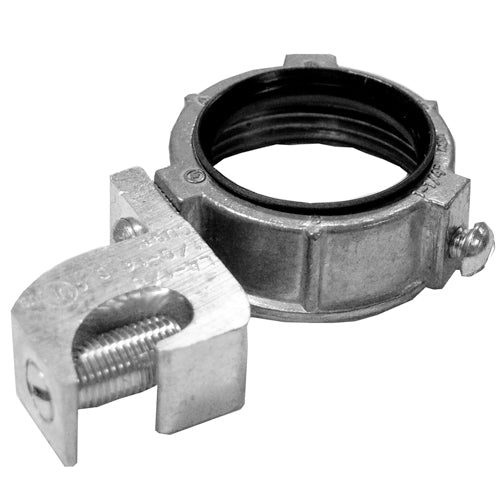

Emerson GBL-700 GBL 2-1/2 Insulated Zinc Grounding Bushing

Product Description

The Emerson GBL-700 is a grounding bushing designed for use with 14 to 1/0 AWG AC cables. This product is made of zinc and is insulated, offering reliable performance. It fits trade size two and a half inches, providing a secure connection in electrical installations.

• Fits AC cables from 14 to 1/0 AWG
• Insulated for safety
• Threaded mounting for easy installation

Product Highlights

The GBL-700 offers a low surface friction design that allows for easy wire pulling while minimizing insulation abrasion. It comes with a set screw that secures the bushing in any desired position.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 68785535013

Technical Specifications

• Series: GBL
• Material: Zinc
• Dimensions: 3.23 in Dia x 0.83 in THK
• Trade Size: 2-1/2 in
• Application: For use with a locknut to terminate rigid metal conduit or IMC conduit to a box or enclosure
• AC Cable Size: 14 to 1/0 AWG
• Mounting Type: Threaded
• Temperature Rating: 302 deg F
• Standards/Approvals: CSA Certified, UL Listed
• Insulated/Non-Insulated: Insulated
