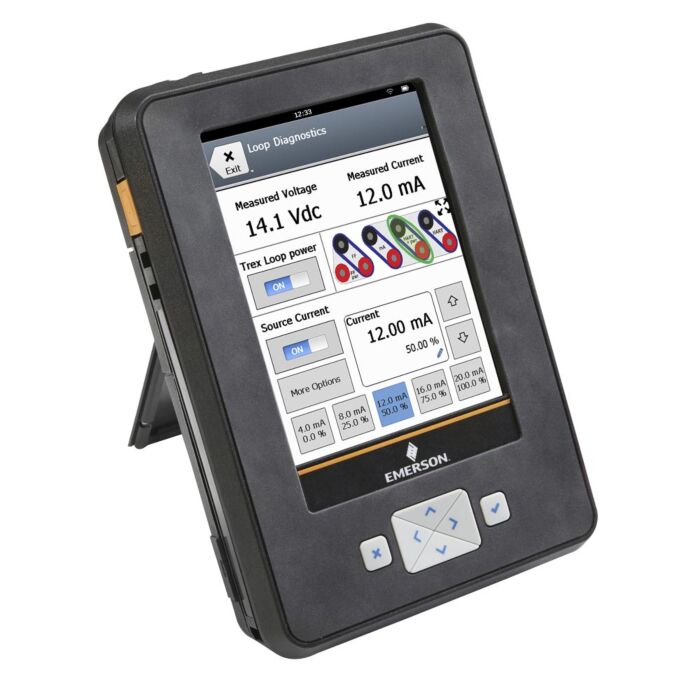

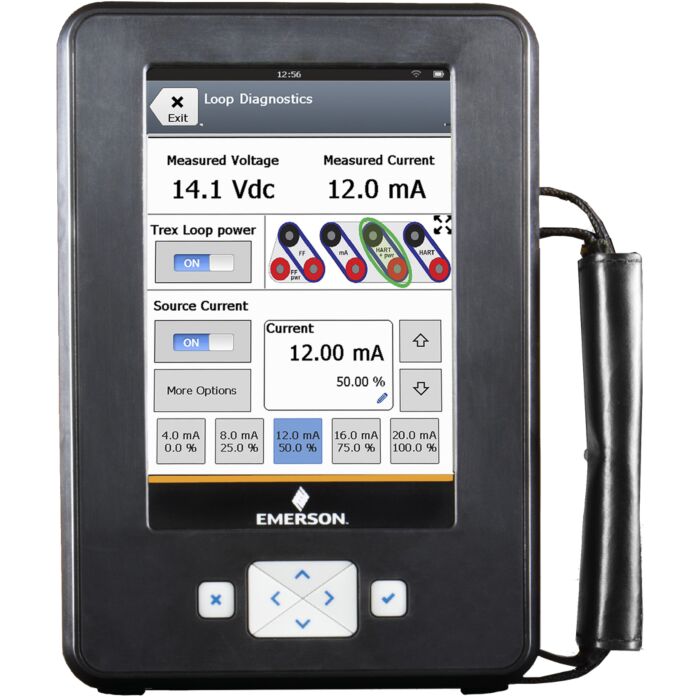

Emerson Flow Controls BLG-4124 Device Communicator

Product Description

The Emerson Flow Controls BLG-4124 is a device communicator ideal for maintenance, troubleshooting, and calibration in various applications. Equipped with a five point seven inch color VGA resistive touchscreen, this device simplifies operation. It is powered by an 800 MHz ARM Cortex A8 / NXP microprocessor and runs on Windows Embedded Compact 2013. The built-in storage includes two gigabytes of NAND and thirty-two gigabytes of extended flash memory.

• Features a 5.7 inch color VGA resistive touchscreen.
• Equipped with Bluetooth, Wi-Fi, and NFC for versatile communication.
• Operates on 800 MHz ARM Cortex A8 for efficient performance.

Product Highlights

This device communicator provides quick access to essential functions, making it suitable for professionals in the field.

Product Information

Standard Information

• Brand: Emerson Flow Controls
• MPN: BLG-4124

Technical Specifications

• Microprocessor: 800 MHz ARM Cortex A8 / NXP
• Memory Internal Flash: 2 GB NAND and 32 GB extended flash
• Operating System: Windows Embedded Compact 2013
• RAM: 512 MB DDR3 SDRAM
• Weight: Approximately 2.9 lbs (1330 grams)
• Display: 5.7 inch color VGA resistive touchscreen
• Battery: Rechargeable Lithium-Ion power module
• Battery Operating Time: 8+ hours of typical use
• Charge Time: 3 to 4 hours
• Bluetooth: 2.1, Range up to 10 m
• Wi-Fi: 802.11 b/g, Range up to 33 m
• NFC: Active NFC, Range up to 20 cm
• Operating Temperature: -20°C to +55°C (-4°F to 131°F)
• Charge Temperature: +10°C to +45°C (50°F to 113°F)
• Storage Temperature with power module: -20°C to +50°C (-4°F to 122°F)
• Storage Temperature without power module: -20°C to +60°C (-4°F to 140°F)
• Enclosure Rating: IP54
• Shock: Survives a 1-meter drop test onto concrete
