Emerson FFAP-A15Z-TFC-072 Condensing Unit 1-1/2 hp

Product Description

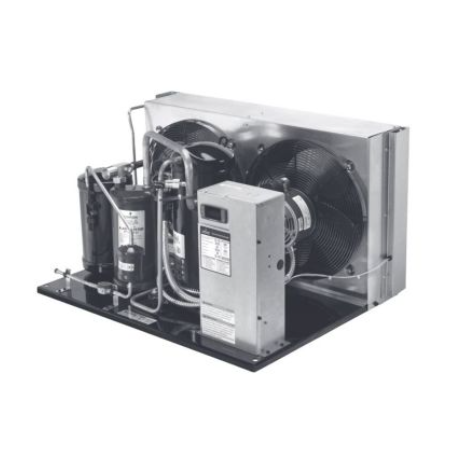

The EMERSON FFAP-A15Z-TFC-072 is a condensing unit with a 1-1/2 hp rating. It operates at 208/230 V with an amperage of 11.4 A and a frequency of 60 Hz. The unit's BTU rating ranges from 2640 to 11600 Btu/hr and has an EER rating of 8.172. It is designed with a 3/8" and 7/8" connection size.

• Scroll compressor
• Air and water cooled condenser
• Flat metal and copevap base

Product Highlights

This condensing unit features a scroll compressor and is suitable for various refrigerants including R-134A, R-22, and R-507.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: FFAP-A15Z-TFC-072

Technical Specifications

• Amperage Rating: 11.4 A
• BTU Rating: 2640 to 11600 Btu/hr
• Connection Size: 3/8 in, 7/8 in
• EER Rating: 8.172
• Frequency Rating: 60 Hz
• HP Rating: 1-1/2 hp
• Phase: 1 ph
• Refrigerant Type: R-134A, R-22, R-404A, R-407A, R-407C, R-448A, R-449A, R-507
• Voltage Rating: 208/230 V
