Emerson ERFA-031E-TAC-800 Compressor 208-230/3

Product Description

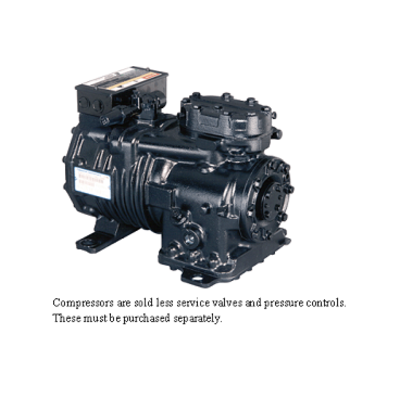

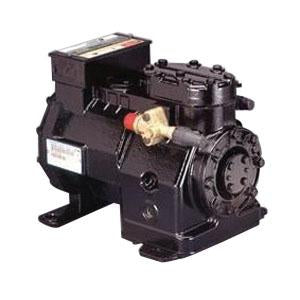

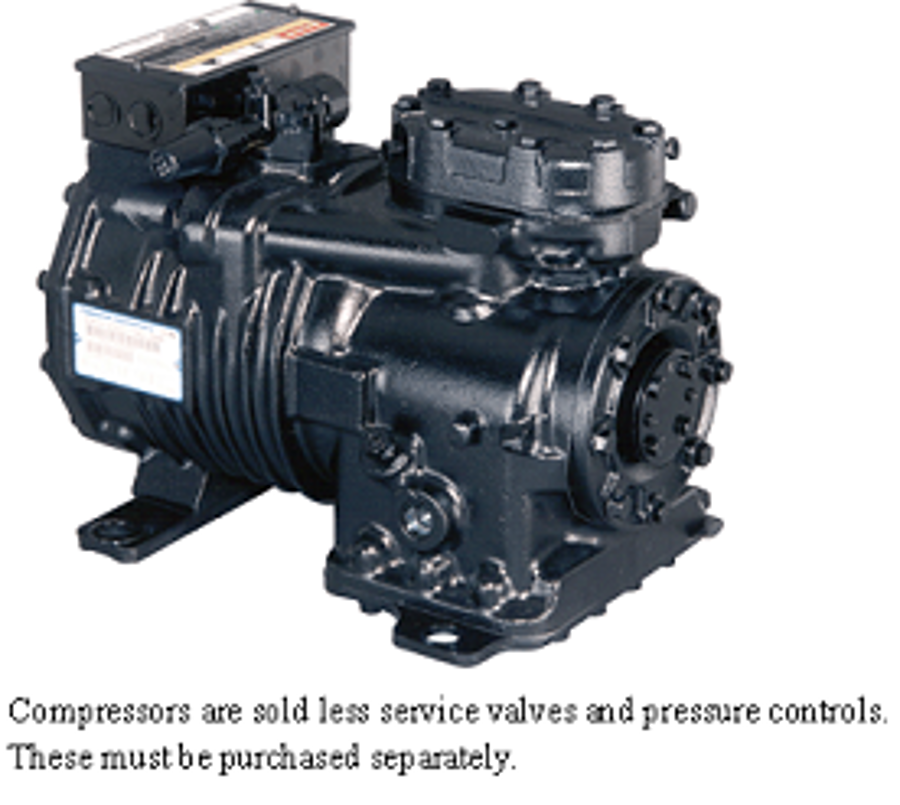

The EMERSON ERFA-031E-TAC-800 is a semi-hermetic compressor designed for refrigeration applications. It features a 208-230/3 voltage and 5/8" F x 1-1/8" S connection. This Copelametic compressor is suitable for commercial refrigeration and requires separate purchase of service valves and pressure controls.

• Designed for refrigeration applications.
• Features a 208-230/3 voltage.
• Copelametic accessible semi-hermetic compressor.

Product Highlights

The EMERSON ERFA-031E-TAC-800 is a semi-hermetic compressor for commercial refrigeration, requiring separate service valves and pressure controls.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ERFA-031E-TAC-800

Technical Specifications

• Voltage: 208-230
• Application: Refrigeration
• Refrigerant: R404
• Body Type: ER
• Frequency: 60Hz
• Height: 12.91"
• Length: 17.69"
• Liquid Line Size: 5/8"F
• Mounting Dimensions: 10.06" x 10.5"
• Phase: Three
• Series: ER
• Suction Line Size: 1-1/8"S
• Temperature Rating: High
• Width: 12"
• Amperage Rating: 11.6 A
• BTU Rating: 35200 Btu/hr
• CFM Rating: 7.69 cfm
• Compressor Oil: POE
• Discharge Line Size: 5/8 in Flare
• EER Rating: 7.2 to 9.2
• Flow Rate: 320 to 555 lb/hr
• Power Rating: 3840 W, 3 hp
• Speed Rating: 3500 rpm
• HP/Ton: 3
